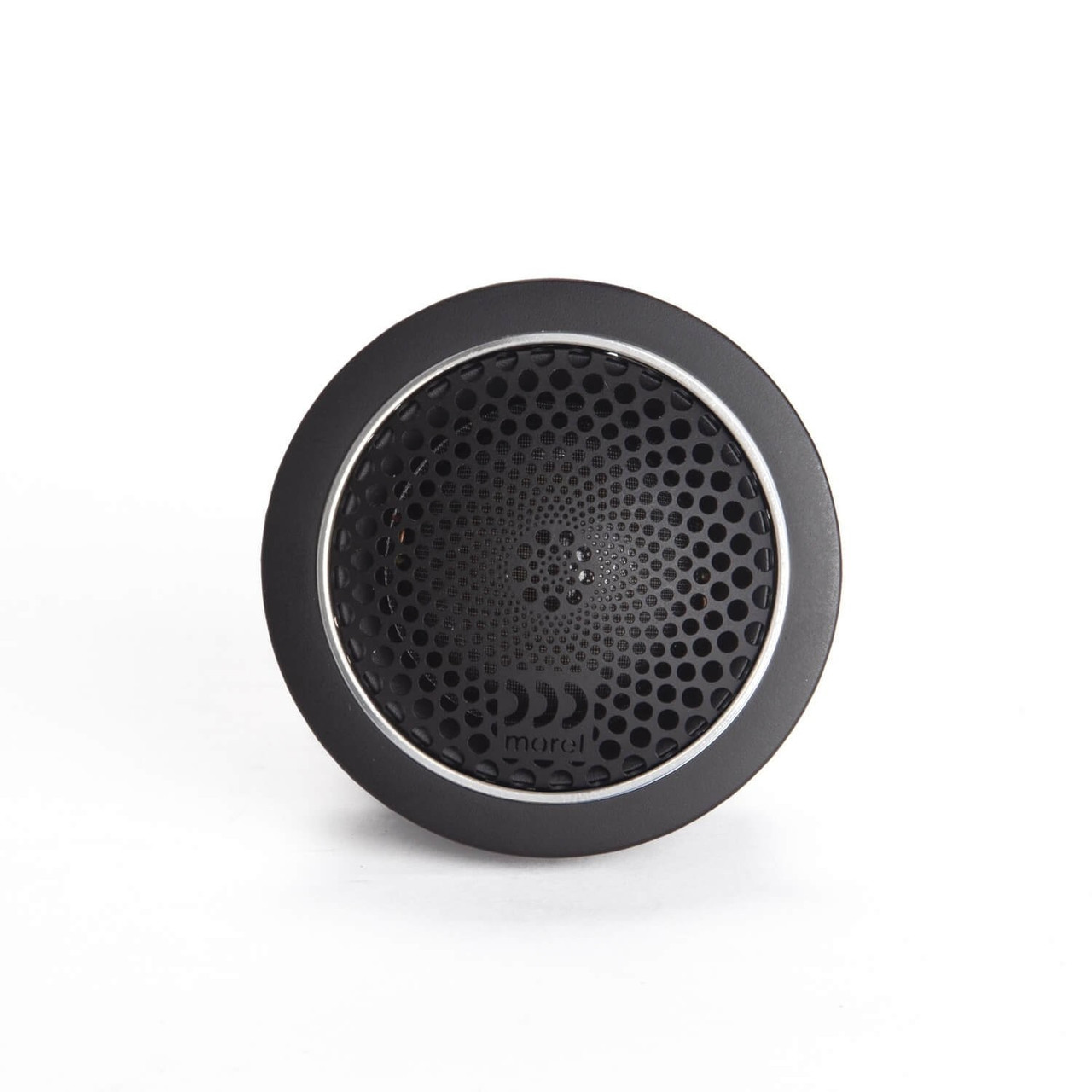

Morel MT300 Tweeter
Compact 1.1" (28mm) Acuflex silk dome tweeters, 6 ohm. Sold in pairs.
Specifications
| Model | MT300 |
|---|---|
| Nominal Impendance (ohm) | 6 |
| Power Handling Wrms | 130 |
| Max. Trans. Pwr Handling Wrms (10ms) | 350 |
| Sensitivity (2.83 V/1M) dB | 93 |
| Frequency Response Hz | 1600-25000 |
| FS Hz | 1000 |
| Voice Coil Diameter mm (inch) | 28 (1.125) |
| Voice Coil Former | Aluminium |
| Voice Coil Wire | Hexatech™ aluminium |
| DC Resistance ohm | 5.2 |
| Magnet System | Double Magent Neodymium |
| Dome Type | Acuflex™ hand coated soft dome |
| Dome Material | Silk |
| Unit Diameter mm (inch) | 43.00 (1.69) |
| Mounting Dept mm (inch) | 13.20 (0.52) |
| Mounting Cutout mm (inch) | 47.00 (2.00) |
| Net Weight Kg (lb) | 0.067 (0.134) |
