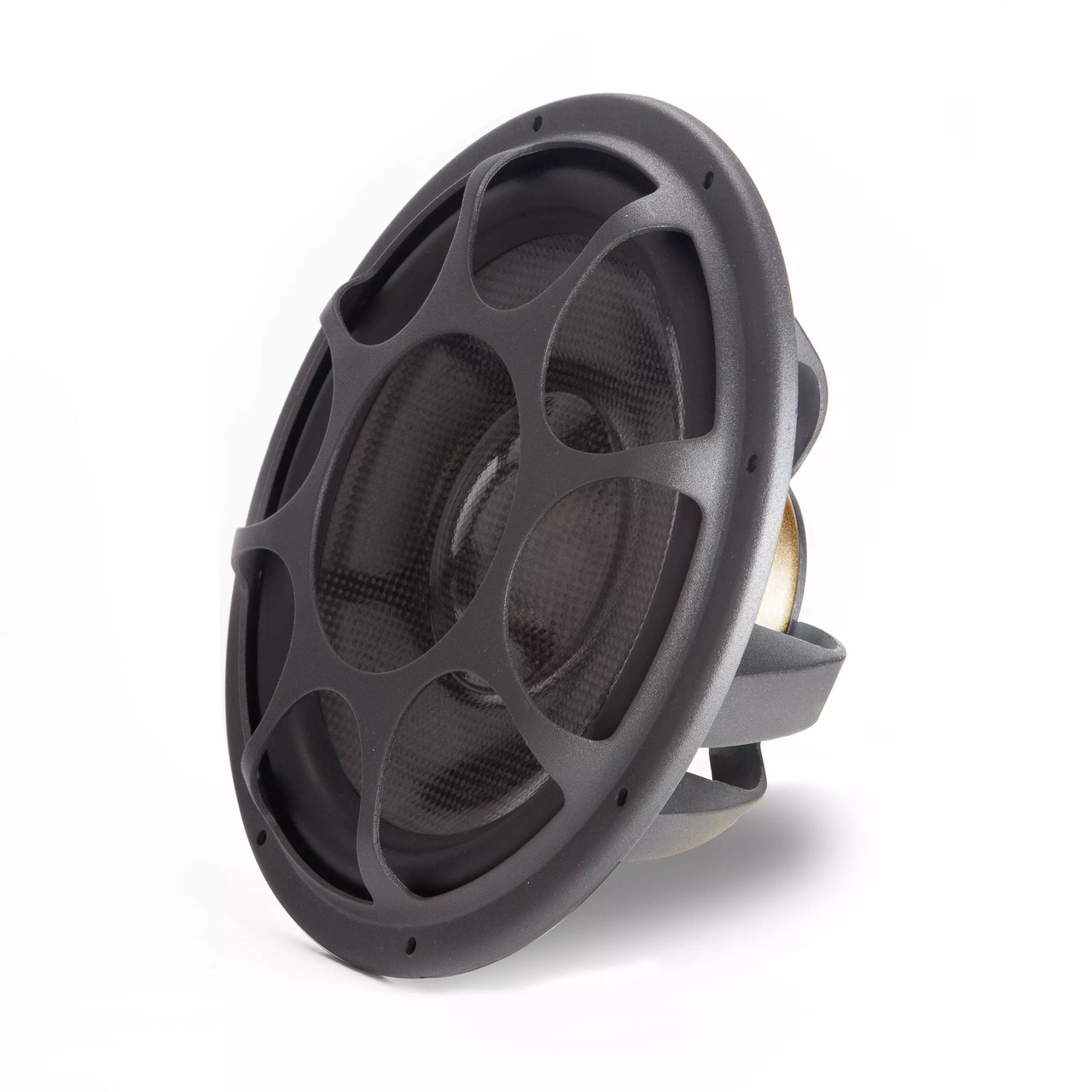

Morel ELATE CARBON MW9
9" Elate Carbon woofers with cast basket, 3" voice coil, and carbon fiber/Rohacell sandwich cone, 4 ohm. Sold in pairs.
Specifications
| Model | ELATE CARBON MW9 |
|---|---|
| Nominal Impendance (ohm) | 4 |
| Power Handling Wrms | 200 |
| Max. Trans. Pwr Handling Wrms | 1000 |
| Sensitivity (2.83 V/1M) dB | 89 |
| Frequency response Hz | 25 - 3000 |
| Resonant Freq. Fs Hz | 44 |
| Voice Coil Diameter mm (inch) | 75 (3) |
| Voice Coil Height mm (inch) | 14.50 (0.57) |
| Voice Coil Type/Former | Titanium |
| Voice Coil Wire | HexatechTM Aluminium |
| DC Resistance (ohm) | 3.6 |
| Voice Coil Induct. @1 kHz (mH) | 0.615 |
| Magnet System | Double magnet rear vented |
| HE-Magnetic Gap Height mm (inch) | 5 (0.20) |
| B-Flux Density (T) | 0.74 |
| BL Product/BXL | 5.15 |
| Max. Linear Ex./Xmax mm (inch) | ±4.75mm (0.18) |
| Suspension Compliance CMS - mm/N | 0.36 |
| Electrical Q Factor QES | 0.61 |
| QTS | 0.56 |
| QMS | 6 |
| Mech. Resistance RMS- N . S / M | 1.2 |
| Moving Mass MMS - gr/ounce | 30 (1.05) |
| Equiv. Can Air Load VAS - L (cu.ft3) | 30.9 (1.1) |
| Effective Piston Area SD sq.cm (sq.inch) | 219 (33.95) |
| Cone Type | One-piece formed |
| Cone Material | DPC |
| Unit Diameter mm(inch) | 222 (8.75) |
| Mounting Depth mm (inch) | 71 (2.80) |
| Mounting Cutout | 192 (7.56) |
| Net Wight Kg (lb) | 1.42 (3.13) |
