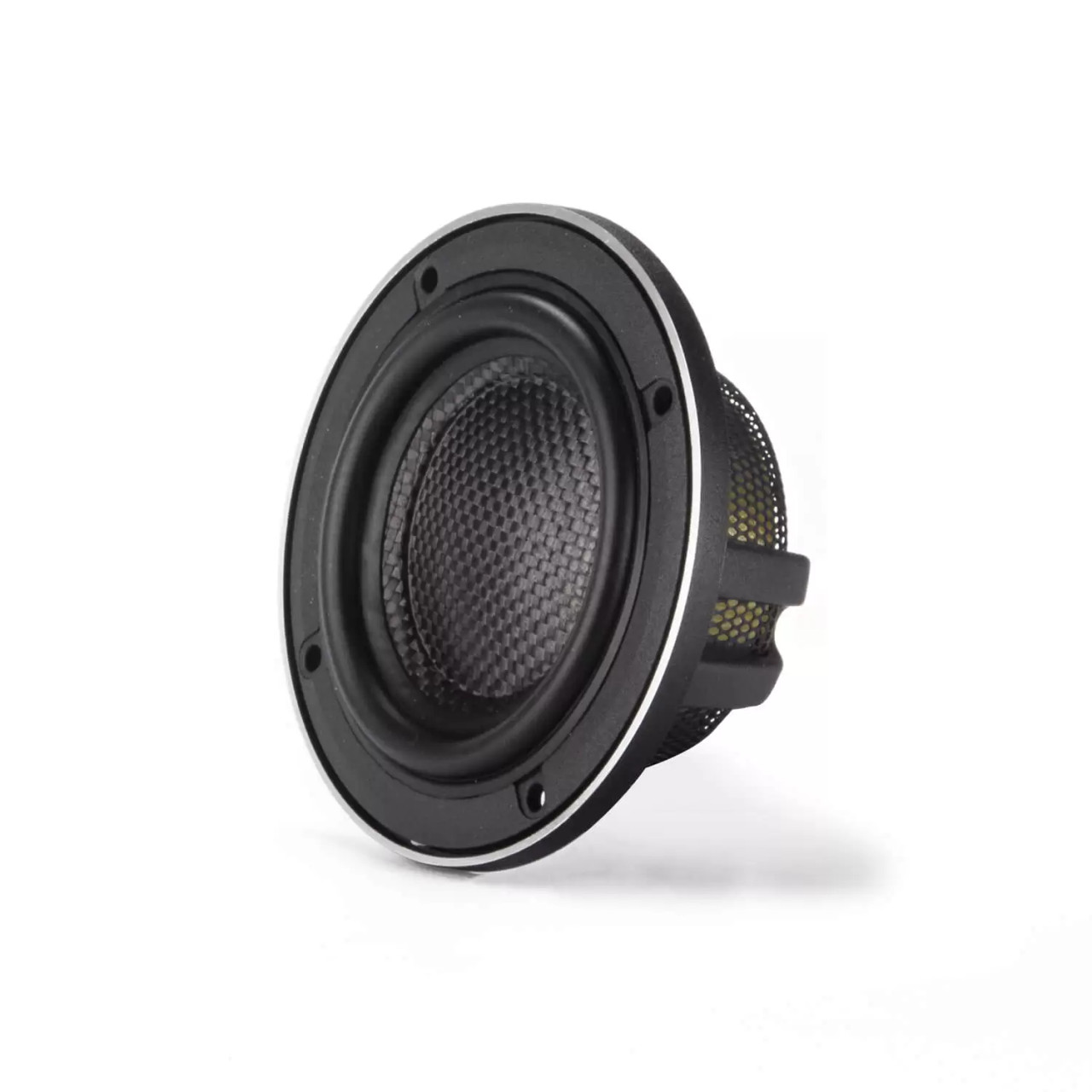

Morel ELATE CARBON MM3
À la carte pair -
3.5" midrange with cast basket, 2.1" voice coil, 4 ohm
Specifications
| Model | MM3 |
|---|---|
| Nominal Impendance (ohm) | 4 |
| Power Handling Wrms | 120 |
| Max. Trans. Pwr Handling Wrms (10ms) | 400 |
| Sensitivity (2.83 V/1M) dB | 87 |
| Frequency Response Hz | 90 - 6000 |
| FS Hz | 88 |
| Voice Coil Diameter mm (inch) | 54 (2.125) |
| Voice Coil Former | Aluminium |
| Voice Coil Wire | HexatechTM aluminium |
| DC Resistance ohm | 3 |
| Magnet System | Neodymium Rear Vented |
| ConeType | One-piece formed |
| Cone Material | DPC |
| Unit Diameter mm (inch) | 100.00 (3.9) |
| Mounting Dept mm (inch) | 38.00 (1.5) |
| Mounting Cutout mm (inch) | 83 (3.3) |
| Net Weight Kg (lb) | 0.38 (0.83) |
