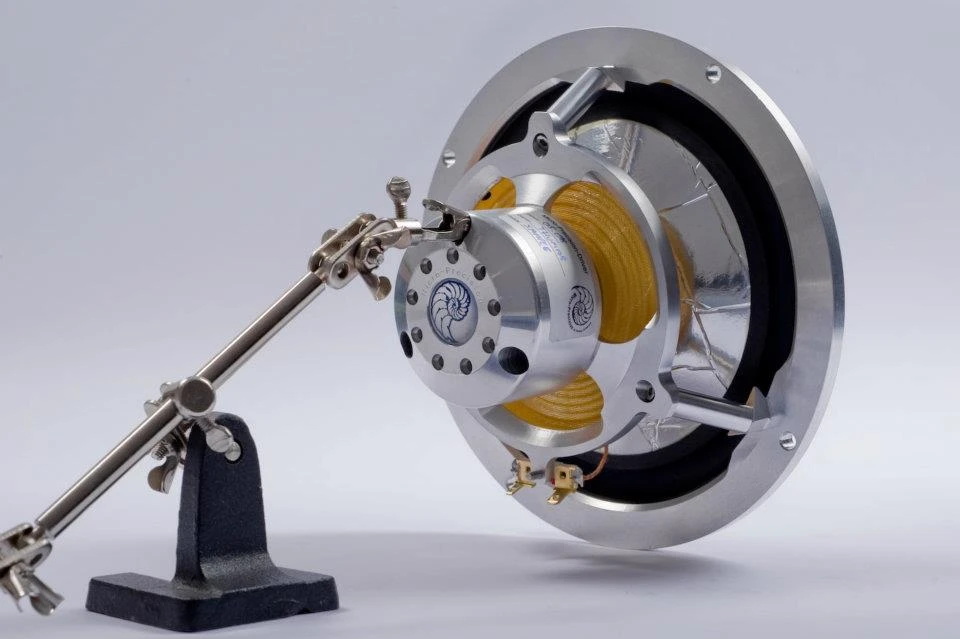

Micro Precision Z-Studio 170 M8 6.5″ Bass-Midrange
The Micro Precision Z-Studio 170 M8 is a high-end 6.5″ bass-midrange driver built around the M8 generation of Micro Precision’s foam and foil composite membrane, suited to automotive aftermarket applications.
Specifications
| Height total | 79,2 mm |
|---|---|
| Surround | Rubber / Low-Loss |
| Outer Diameter | 170,0 mm |
| Sensitivity | 89 dB/W |
| Cutout Diameter | 145,0 mm |
| Impedance | 4 Ω |
| Interior Depth | 72,2 mm |
| Power handling | 70/150 W |
| Drillcircle | 162,0 mm |
| Voicecoil | GF |
| Voicecoil diameter | 25 mm |
| Membrane | M8 |
| Recommended Filter | HP 63 Hz/12dB |
| Weight | 0,728 Kg / piece. |
| Updated | 2024-02 |
