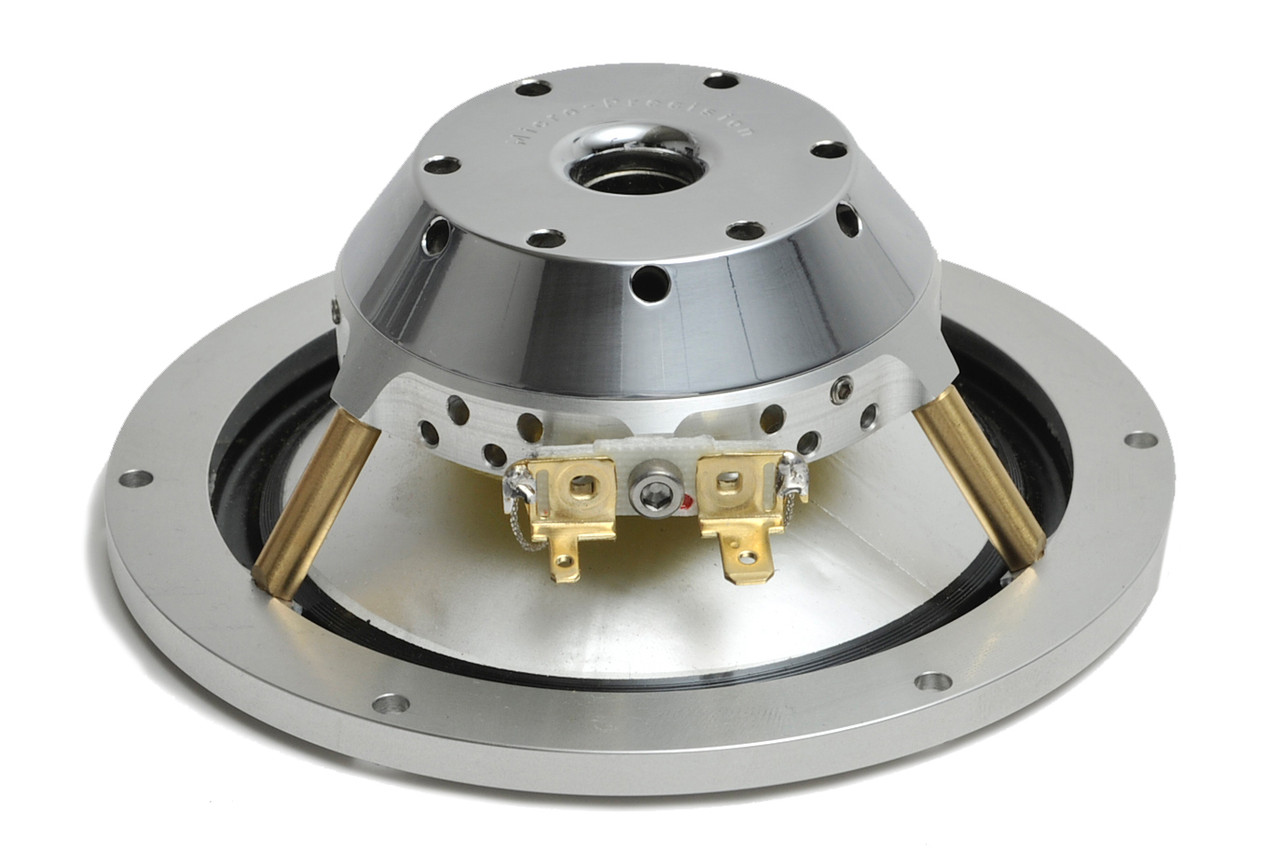

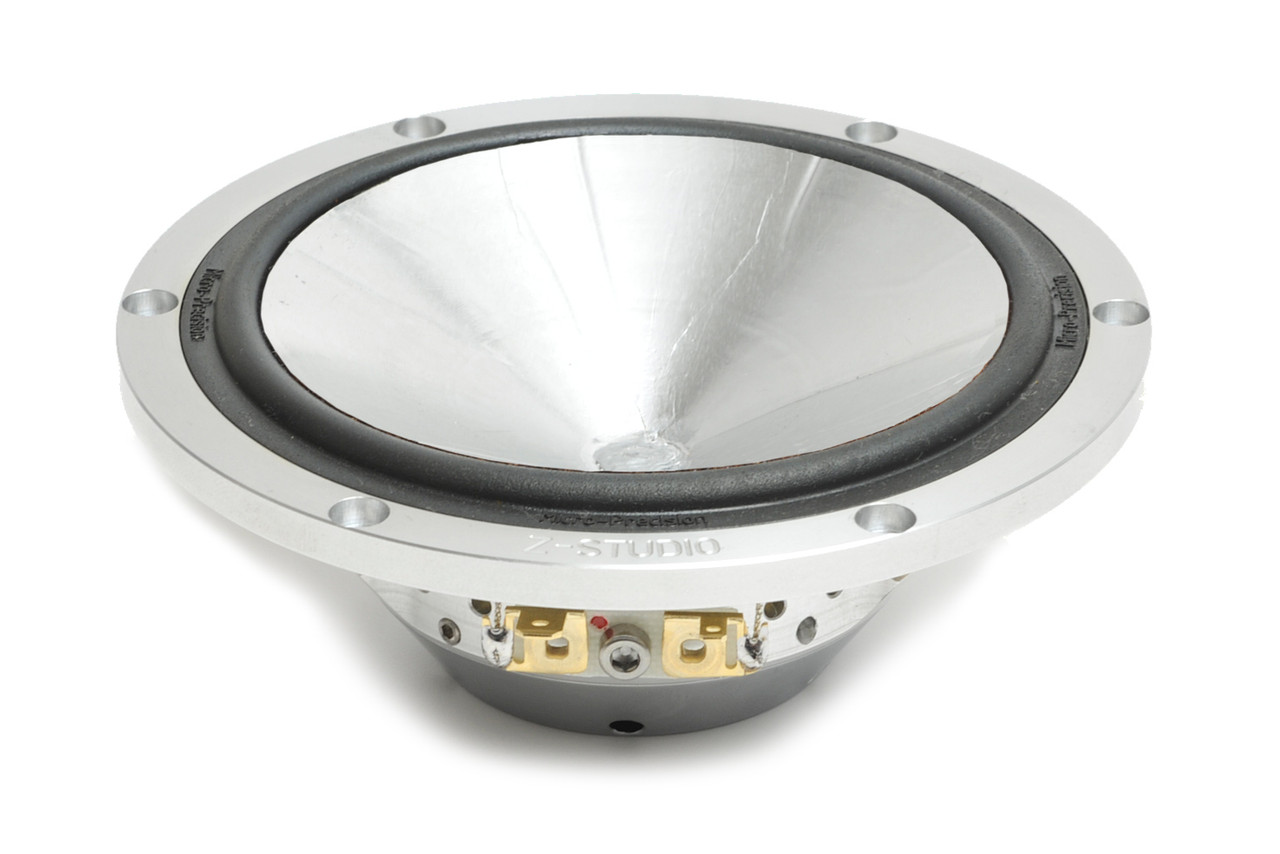

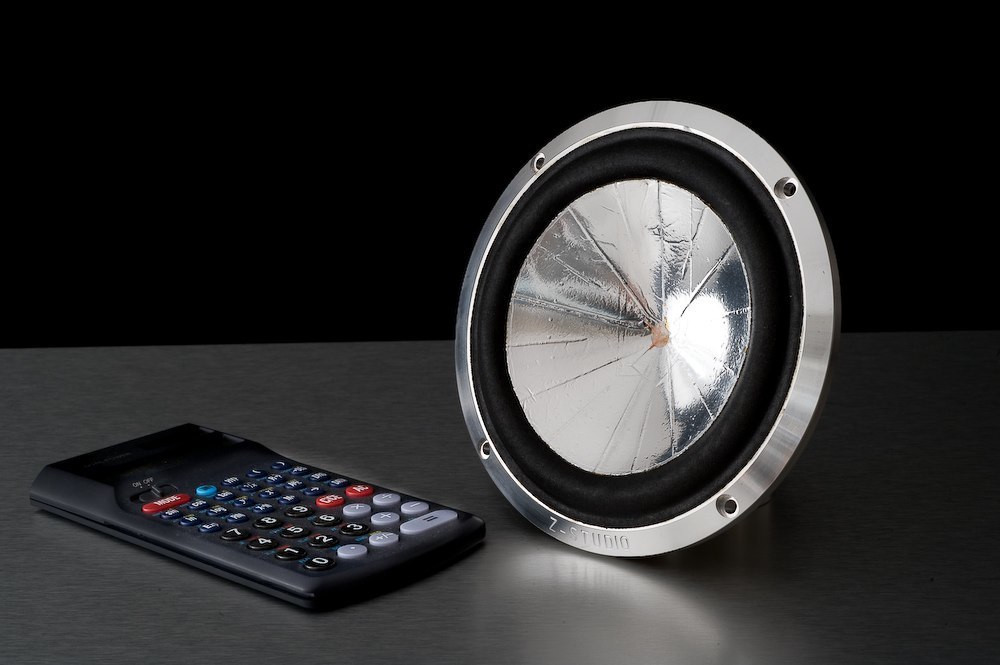

Micro Precision Z-Studio 100 M8 3.5″ Midrange
The Micro Precision Z-Studio 100F mkii is a high-end midrange speaker with a foam and foil composite cone suitable for automotive aftermarket applications.
Specifications
| Height total | 39.5 mm |
|---|---|
| FS | 110 Hz |
| Outer Diameter | 109.5 mm |
| Moving Mass | 2,9 gramm |
| Cutout Diameter | 90.0 mm |
| Impedance | 8 Ω |
| Interior Depth | 34.5 mm |
| Power handling | Depending on Filter |
| Drillcircle | 102.8 mm |
| Voicecoil | GF - CCAW |
| Voicecoil diameter | 25mm |
| Membrane | M8 |
| Recommended Filter | 150 - 5.000 Hz. |
| Weight | 610 gr. / Pair |
| Updated | 11.2015 |
