HELIX 201 X-Over
Small, efficient and uncompromisingly stable – the M ONE is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.
In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
Features
- Small footprint Class D amplifier with high output power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 6V supply voltage
- Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- Extremely stable output stage with high-current power transistors and 1 Ohm stability

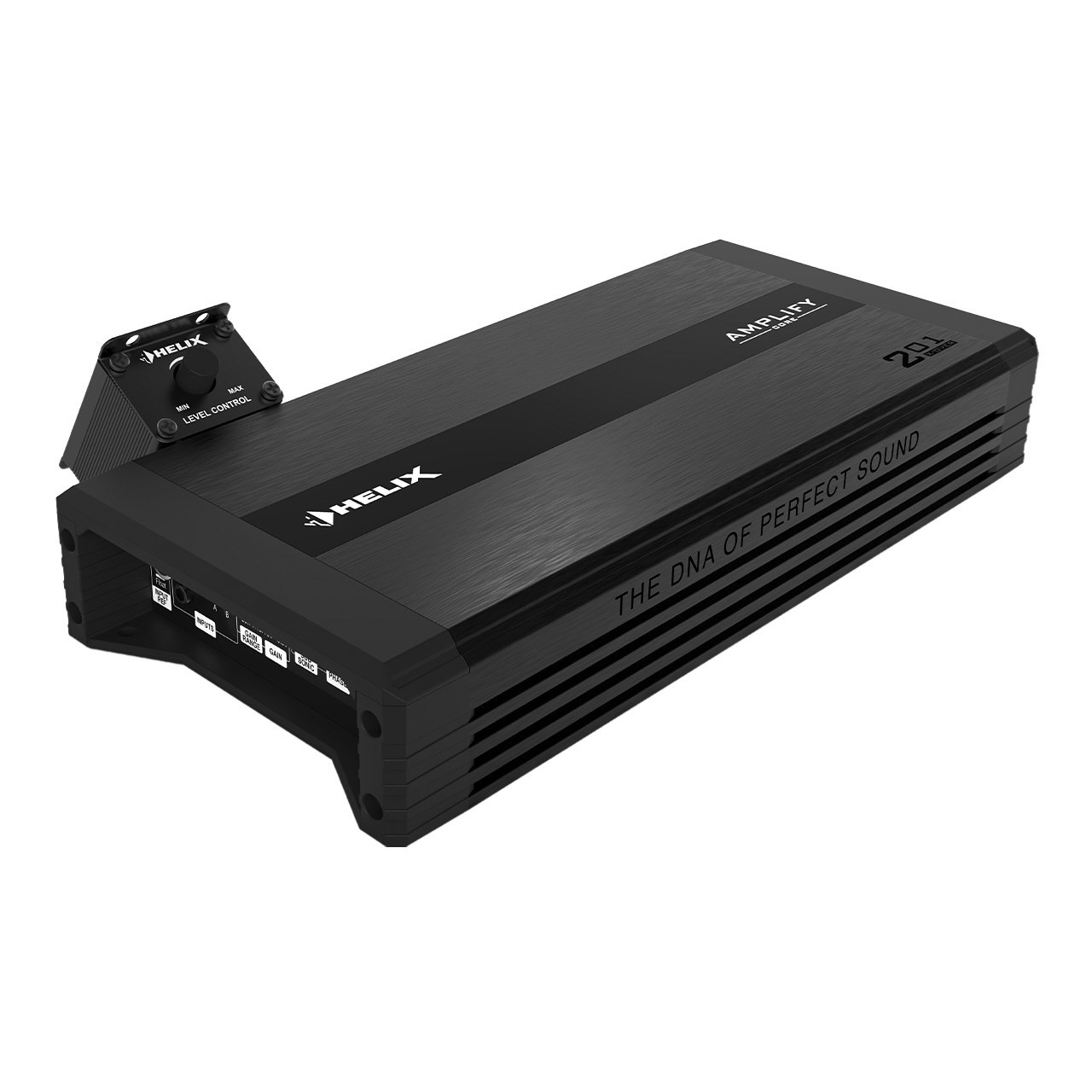

- Bass remote control for volume adjustment
- SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
- Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Special features:
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M ONE assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.
Specifications
| Power RMS ≤ 1% THD+N @ 14.4 V | |
|---|---|
| - @ 4 Ohms | 1 x 250 Watts |
| - @ 2 Ohms | 1 x 450 Watts |
| - @ 1 Ohm | 1 x 750 Watts* |
| - bridged @ 4 Ohms | - |
| - bridged @ 2 Ohms | - |
| Max. output power | Up to 850 Watts RMS @ 1 Ohm |
| Amplifier technology | Class D |
| Inputs | 1 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input |
| Input sensitivity | RCA / Cinch: 0.5 - 6 Volts Highlevel: 3 - 32 Volts |
| Input impedance | RCA / Cinch: 8 kOhms Highlevel: 9 - 33 Ohms |

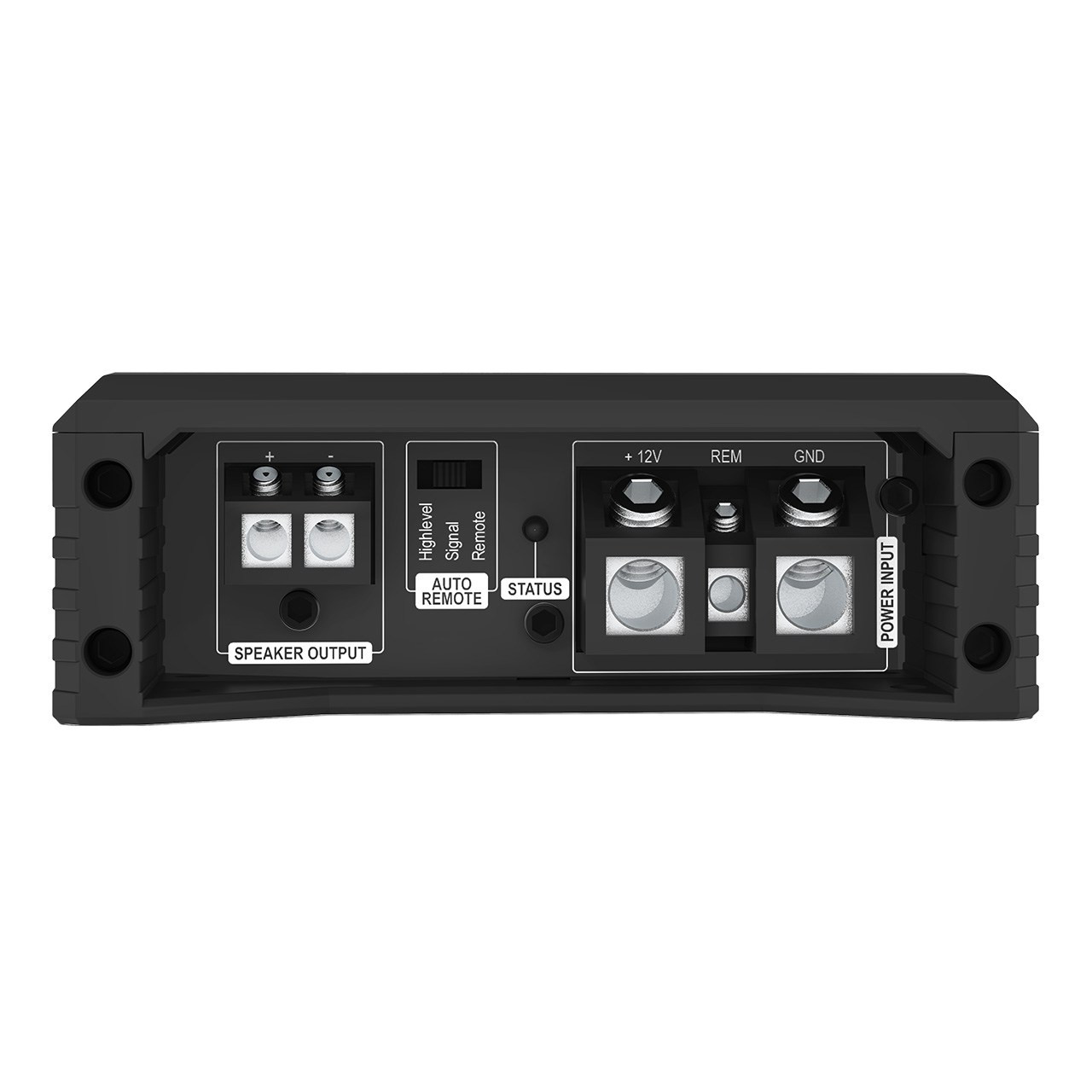

| Outputs | 1 x Speaker output |
| Output voltage RCA / Cinch | - |
| Signal converter for digital input | - |
| Frequency response | 10 Hz - 250 Hz |
| Bass boost | - |
| Highpass | - |
| Lowpass | 50 Hz - 250 Hz adjustable |
| Bandpass | - |
| Subsonic | 10 Hz - 50 Hz adjustable |
| Phase | 0° - 180° adjustable |
| Slope high- / lowpass | Lowpass: 12 dB/Oct. |
| Slope subsonic | 12 dB/Oct. |
| Slope subsonic / lowpass | - |
| Signal-to-noise ratio (A-weighted) | 114 dB @ full power |
| Distortion (THD @ 1 kHz, 1 W into 4 Ohms) | - |
| Distortion (THD+N @ 1 kHz, 1 W into 4 Ohms) | - |
| Distortion (THD @ 100 Hz, 1 W into 4 Ohms) | < 0.003% |
| Distortion (THD+N @ 100 Hz, 1 W into 4 Ohms) | < 0.02 % |
| Damping factor | 200 |
| Operating voltage | 10.5 - 16 Volts (max. 5 sec. down to 6 Volts) |
| Idle current | 1,100 mA |
| Fuse | 2 x 30 A LP-Mini-fuse (APS) |
| Power rating | DC 12 V ⎓ 80 A max. |
| Operating temperature range | -40 °C to +70 °C |
| Additional features | Active, adjustable crossover, Start-Stop capability, highlevel input with automatic turn-on function, ADEP.3 |
| Dimensions (H x W x D) | 41.5 x 248 x 118 mm / 1.63 x 9.76 x 4.65” |
