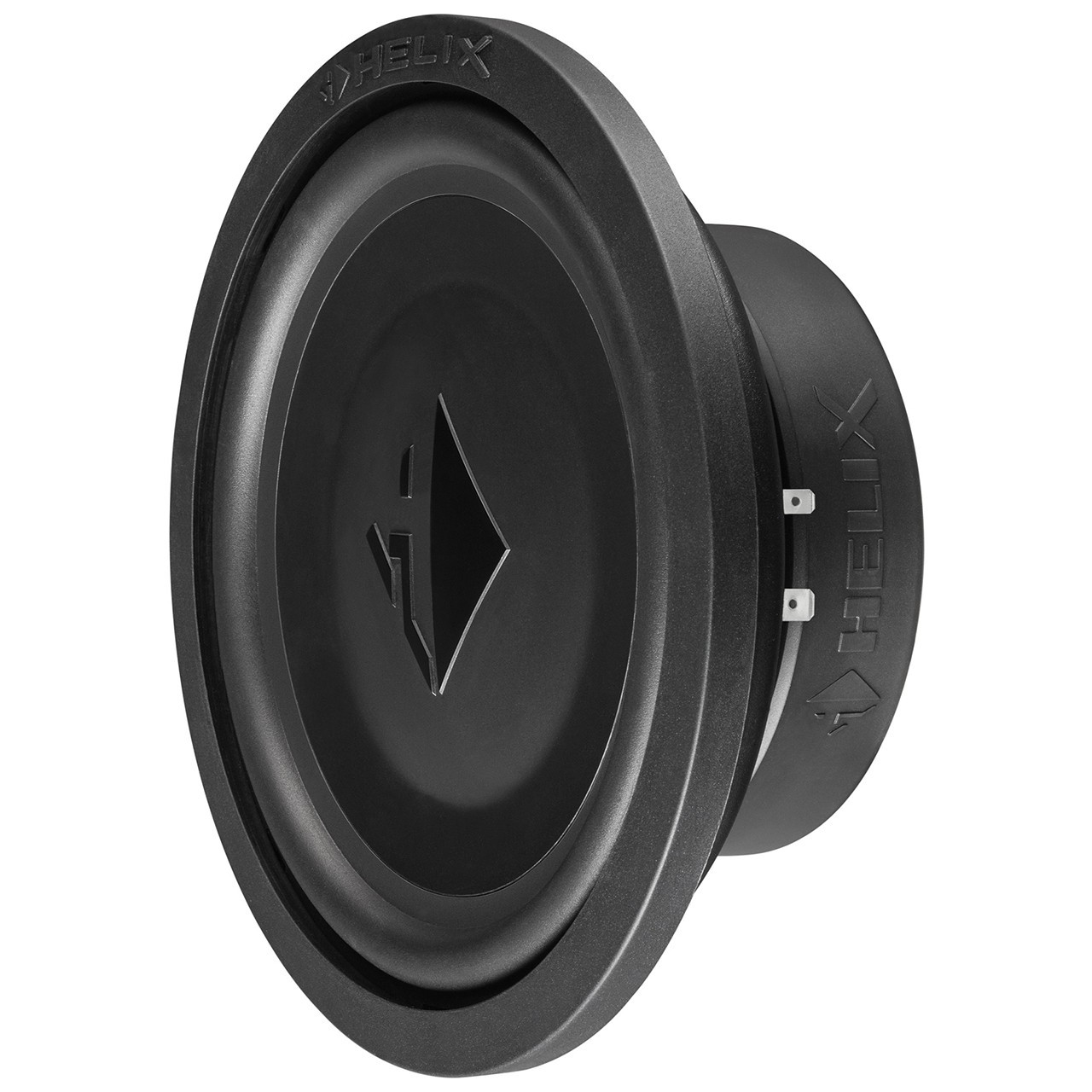

HELIX IK S8 SVC2
200 mm (8") slim component subwoofer, single 2 Ω voice coil, 300 W.
Specifications
IK S8-SVC2 – 1 x 2 Ohms
| Power handling RMS / max. (P) | 300 / 600 Watts |
|---|---|
| Impedance (Z) | 1 x 2 Ω |
| DC resistance (Re) | 2.0 Ω |
| Resonance frequency (Fs) | 43 Hz |
| Mechanical Q factor (Qms) | 7.79 |
| Electrical Q factor (Qes) | 0.53 |
| Total Q factor (Qts) | 0.50 |
| Compliance (Cms) | 170 μm/N |
| Equivalent air volume (Vas) | 11 L |
| Force factor (B*I) | 9.1 Tm |
| Sensitivity (SPL) | 91.0 dB @ 2.83V / 1m 85.0 dB @ 1W / 1m |
| Cone area (Sd) | 222 cm² |
| Moving mass (Mms) | 81 g |
| Cone material | Sandwich paper cone |
| Mechanical resistance (Rms) | 2.8 kg/s |
| Voice coil diameter (ø) | 50.8 mm |
| Voice coil winding height | 19 mm |
| Max. linear excursion (Xmax) | +/- 6,0 mm |
| Outer diameter (ø) | 213.4 mm / 8.40" |
| Installation diameter (ø) | 180.4 mm / 7.10" |
| Installation depth | 79.5 mm / 3.13" |
Recommended enclosure volumes
Sealed box
| Net volume | 10 L |
|---|---|
| Lower limiting frequency (-3dB) | 46 Hz |
| Recommended DSP settings | Recommended "self-define" highpass filter with 46 Hz cut-off frequency and Q = 1.5; additional EQ filter 100 Hz / Q = 1.0 / -2.5 dB |
Vented box
| Net volume | 10 L |
|---|---|
| Port diameter (ø) | 60 mm / 2.36" |
| Port area | 28 cm² |
| Port length | 42 cm / 16.5" (angled port) |
| Port tuning frequency (Fb) | 39 Hz |
| Lower limiting frequency (-3dB) | 45 Hz |
| Recommended DSP settings | Recommended "self-define" highpass filter with 40 Hz cut-off frequency and Q = 1.2; additional EQ filter 100 Hz / Q = 0.9 / -2 dB |
