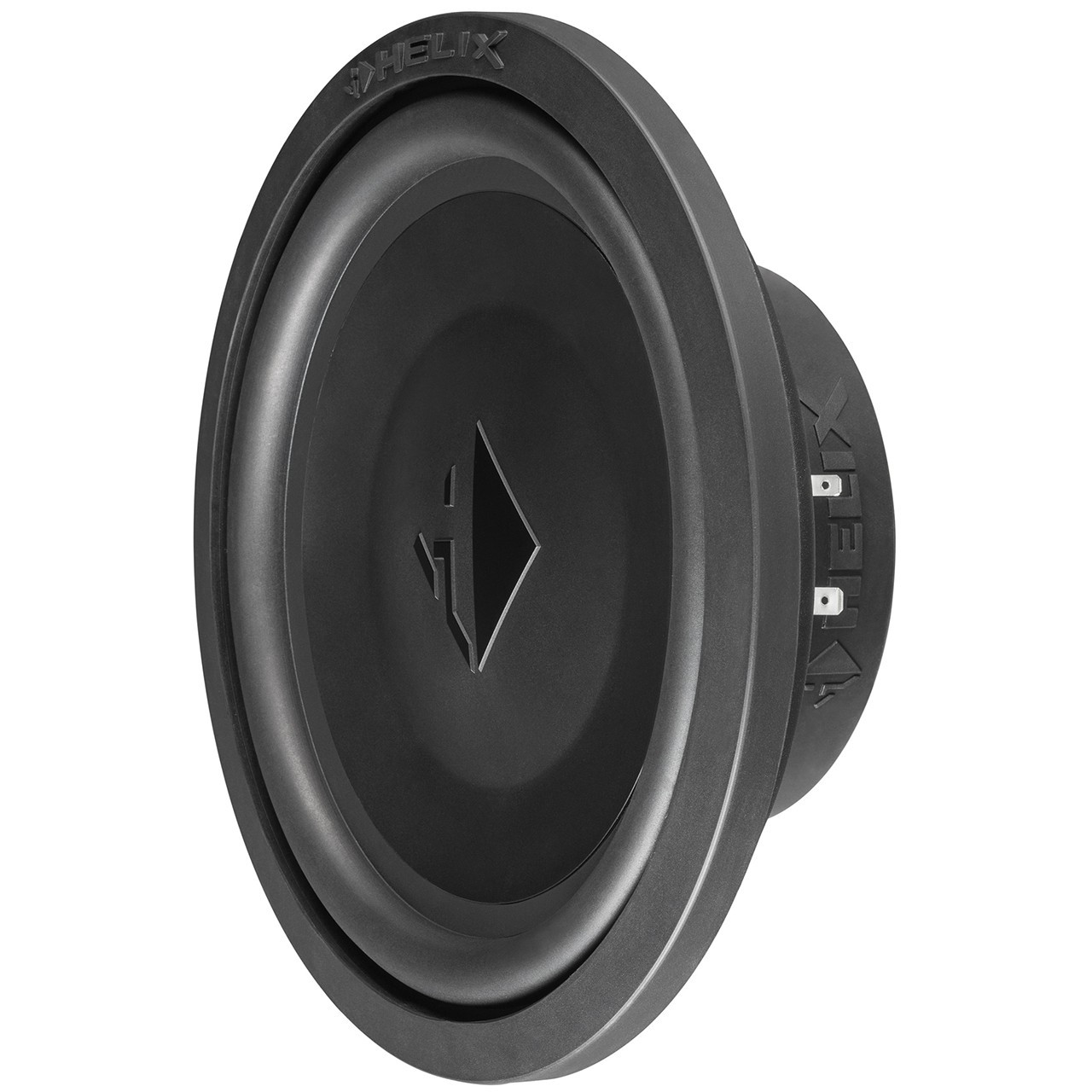

HELIX IK S10 DVC2
250 mm (10") slim component subwoofer, dual 2 Ω voice coils, 300 W.
Specifications
IK S10-DVC2 – 2 x 2 Ohms
| Power handling RMS / max. (P) | 300 / 600 Watts |
|---|---|
| Impedance (Z) | 2 x 2 Ω |
| DC resistance (Re) | 2 x 1.6 Ω |
| Resonance frequency (Fs) | 34 Hz |
| Mechanical Q factor (Qms) | 6.37 |
| Electrical Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.45 |
| Compliance (Cms) | 198 μm/N |
| Equivalent air volume (Vas) | 34 L |
| Force factor (B*I) | 12.7 Tm |
| Sensitivity (SPL) | 90.0 dB @ 2.83V / 1m 87.0 dB @ 1W / 1m |
| Cone area (Sd) | 353 cm² |
| Moving mass (Mms) | 112 g |
| Cone material | Sandwich paper cone |
| Mechanical resistance (Rms) | 3.73 kg/s |
| Voice coil diameter (ø) | 50.8 mm |
| Voice coil winding height | 18 mm |
| Max. linear excursion (Xmax) | +/- 6.0 mm |
| Outer diameter (ø) | 262 mm / 10.31" |
| Installation diameter (ø) | 229 mm / 9.01" |
| Installation depth | 84.5 mm / 3.33" |
Recommended enclosure volumes
Sealed box
| Net volume | 14 L |
|---|---|
| Lower limiting frequency (-3dB) | 46 Hz |
| Recommended DSP settings | Recommended "self-define" highpass filter with 45 Hz cut-off frequency and Q = 1.3; additional EQ filter 100 Hz / Q = 1.0 / -3 dB |
Vented box
| Net volume | 16 L |
|---|---|
| Port diameter (ø) | 70 mm / 2.76" |
| Port area | 38 cm² |
| Port length | 38 cm / 14.96" |
| Port tuning frequency (Fb) | 37 Hz |
| Lower limiting frequency (-3dB) | 39 Hz |
| Recommended DSP settings | Recommended "self-define" highpass filter with 37 Hz cut-off frequency and Q = 1.2; additional EQ filter 95 Hz / Q = 0.7 / -3 dB |
