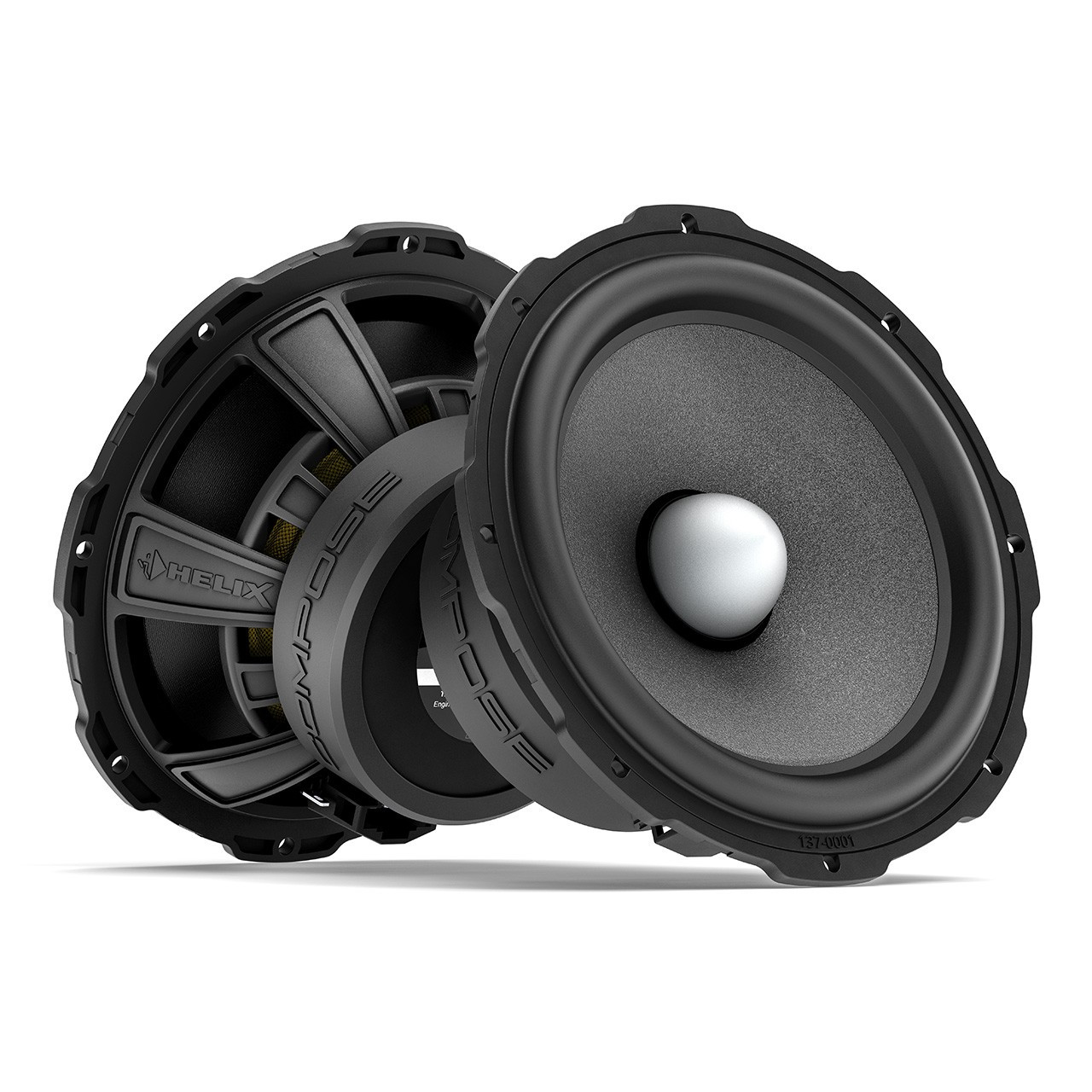

HELIX Ci5 W165FM-S3
165 mm (6.5") midbass, 3 Ω, from the Compose i5 line.
Specifications
| Power handling RMS / Max. (P) | 125 / 175 Watts |
|---|---|
| Impedance (Z) | 3 Ω |
| DC resistance (Re) | 3.1 Ω |
| Frequency response | 50 Hz - 5,000 Hz |
| Resonance frequency (Fs) | 50 Hz |
| Mechanical Q factor (Qms) | 2.38 |
| Electrical Q factor (Qes) | 0.50 |
| Total Q factor (Qts) | 0.41 |
| Compliance (Cms) | 742 µm/N |
| Equivalent air volume (Vas) | 17.9 L |
| Force factor (B*I) | 5.2 Tm |
| Sensitivity (SPL) | 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m |
| Cone area (Sd) | 131 cm² |
| Moving mass (Mms) | 14.0 g |
| Cone material | Silicon coated paper cone |
| Mechanical resistance (Rms) | 1.83 kg/s |
| Voice coil diameter (ø) | 37 mm |
| Voice coil winding height | 13.7 mm |
| Max. linear excursion (Xmax) | +/- 3.9 mm |
| Outer diameter (ø) | 165 mm / 6.5" |
| Installation diameter (ø) | 142 mm / 5.59" |
| Installation depth | 66.8 mm / 2.63" |
| Features | ProConnect terminal, FlexMount165 |
