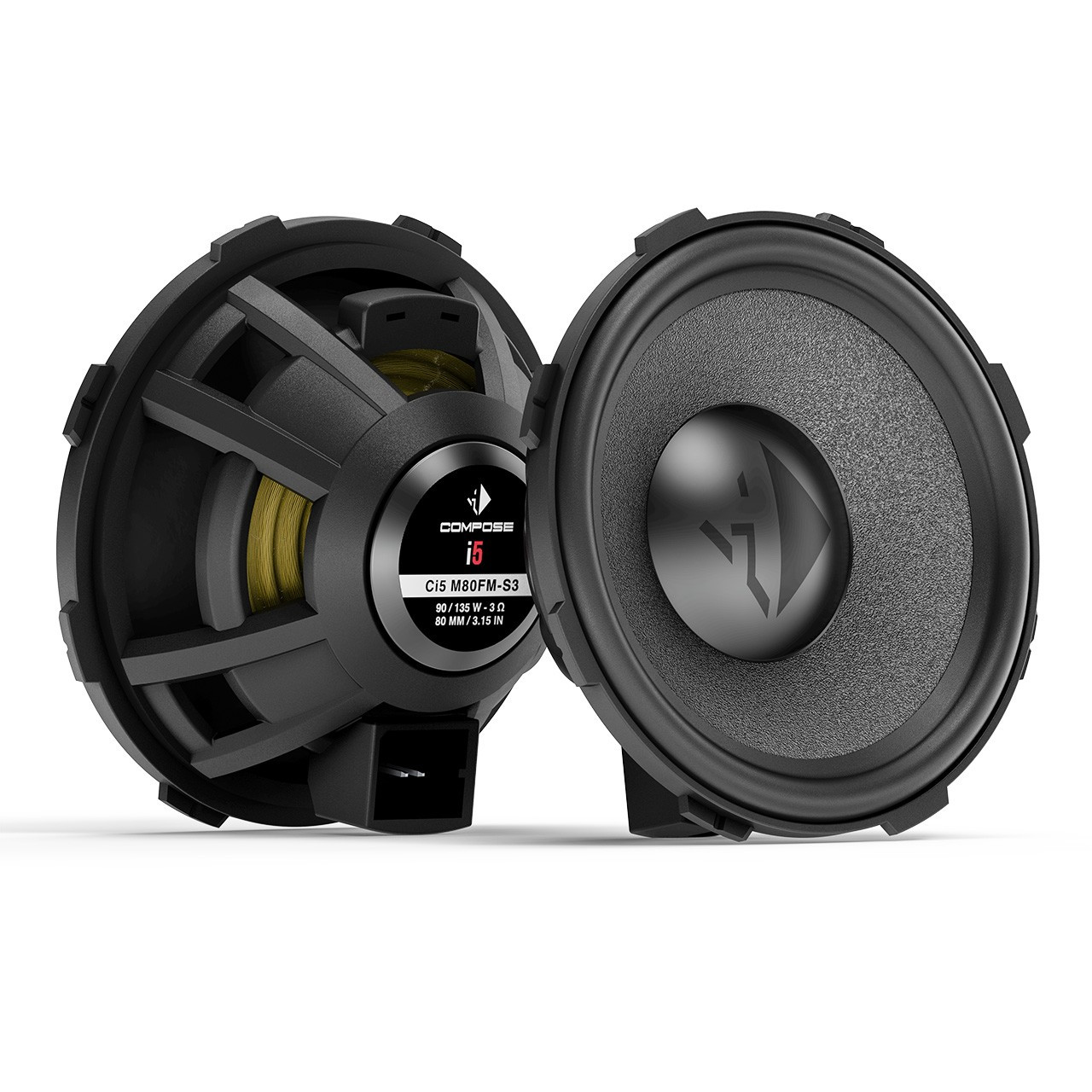

HELIX Ci5 M80FM-S3
80 mm (3") midrange, 3 Ω, from the Compose i5 line.
Specifications
| Power handling RMS / Max. (P) | 90 / 135 Watts |
|---|---|
| Impedance (Z) | 3 Ω |
| DC resistance (Re) | 3.1 Ω |
| Frequency response | 200 Hz - 6,000 Hz |
| Resonance frequency (Fs) | 156 Hz |
| Mechanical Q factor (Qms) | 3.68 |
| Electrical Q factor (Qes) | 0.75 |
| Total Q factor (Qts) | 0.63 |
| Compliance (Cms) | 407 µm/N |
| Equivalent air volume (Vas) | 0.7 L |
| Force factor (B*I) | 3.2 Tm |
| Sensitivity (SPL) | 92 dB @ 2.83 V / 1m 88 dB @ 1W / 1m |
| Cone area (Sd) | 36 cm² |
| Moving mass (Mms) | 2.6 g |
| Cone material | Silicon coated paper cone |
| Mechanical resistance (Rms) | 0.68 kg/s |
| Voice coil diameter (ø) | 20 mm |
| Voice coil winding height | 7 mm |
| Max. linear excursion (Xlin) | +/- 2.5 mm |
| Max. mechanical excursion (Xmax) | +/- 4.5 mm |
| Outer diameter (ø) | 78.5 mm / 3.09" |
| Outer diameter with universal mounting ring (ø) | 88.9 mm / 3.50" |
| Installation diameter (ø) | 69.5 mm / 2.74" |
| Installation depth | 30.2 mm / 1.19" |
| Features | FlexConnect terminal, powerful push-pull neodymium magnet system, FlexMount80 |
