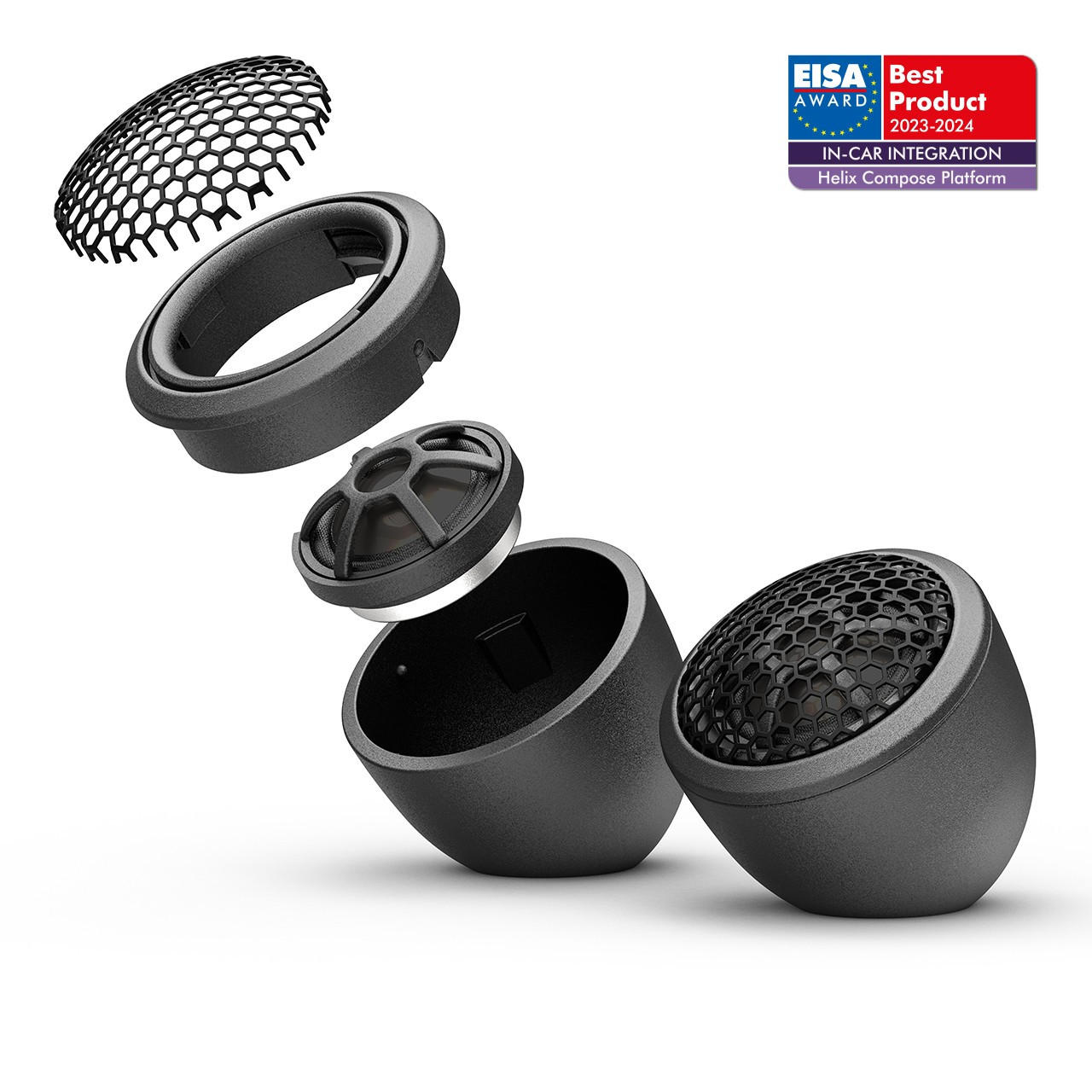

HELIX Ci3 T20FM-AL MK2
20 mm (¾") tweeter from the Compose i3 line.
Specifications
| Impedance (Z) | 4 Ω |
|---|---|
| DC resistance (Re) | 3.2 Ω |
| Frequency response | 2,000 Hz - 25,000 Hz |
| Resonance frequency (Fs) | 1800 Hz |
| Sensitivity (SPL) | 91 dB @ 2.83V / 1m 88 dB @ 1W / 1m |
| Voice coil diameter (Ø) | 20 mm |
| Cone material | Aluminum |
| Outer diameter | 32 mm / 1.26" |
| Installation diameter | 28 mm / 1.10" |
| Installation depth | 9.8 mm / 0.39" |
Recommended crossover frequencies for the highpass
| Slope | Minimum crossover frequency |
|---|---|
| 6 dB/Octave | > 5,000 Hz |
| 12 dB/Octave | > 3,500 Hz |
| 24 dB/Octave | > 3,000 Hz |
