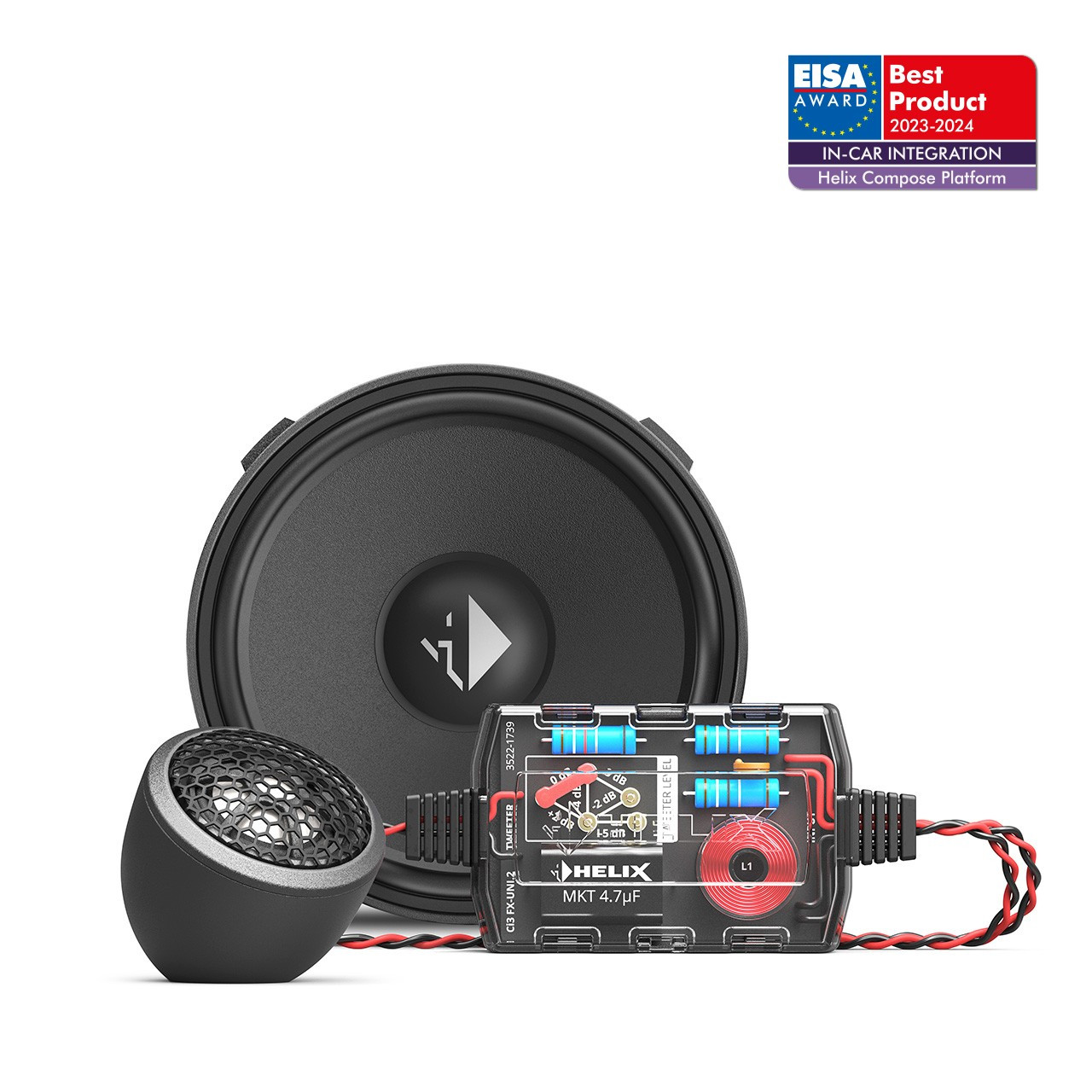

HELIX Ci3 K100.2FM-S3
2-way component system, 100 mm (4"), 3 Ω, from the Compose i3 line.
Specifications
| Power handling RMS / Max. (P) | 80 / 120 Watts |
|---|---|
| Frequency response | 120 Hz - 25,000 Hz |
| Impedance (Z) | 3 Ω |
| Sensitivity (SPL) | 91 dB @ 2.83V / 1m 87 dB @ 1W / 1m |
| Outer diameter (ø) | Tweeter: 32.0 mm / 1.26” Midrange: 98.0 mm / 3.86” |
| Installation diameter (ø) | Tweeter: 32.0 mm / 1.26” Midrange: 89.0 mm / 3.50” |
| Installation depth | Tweeter: 9.8 mm / 0.39” Midrange: 30.0 mm / 1.18” |
| Dimensions crossover | 103.3 x 50.4 x 25.0 mm / 4.07 x 1.98 x 0.98” |
Midrange
| Impedance (Z) | 3 Ω |
|---|---|
| DC resistance (Re) | 3.0 Ω |
| Resonance frequency (Fs) | 146 Hz |
| Mechanical Q factor (Qms) | 4.49 |
| Electrical Q factor (Qes) | 1.02 |
| Total Q factor (Qts) | 0.83 |
| Compliance (Cms) | 280 μm/N |
| Equivalent air volume (Vas) | 1.1 L |
| Force factor (B*l) | 3.4 Tm |
| Cone area (Sd) | 53 cm² |
| Moving mass (Mms) | 4.3 g |
| Mechanical resistance (Rms) | 0.87 kg/s |
| Voice coil diameter (ø) | 25 mm |
| Voice coil winding height | 4.8 mm |
| Max. linear excursion (Xmax) | +/- 2.0 mm |
Tweeter
| Impedance (Z) | 4 Ω |
|---|---|
| Resonance frequency (Fs) | 1800 Hz |
| Voice coil diameter (ø) | 20 mm |
Features
| Tweeter | Ultra compact, titanium dome, neodymium magnet and FlexMount20 |
|---|---|
| Midrange | Paper with Cenosphere coating, FlexConnect terminal, neodymium magnet and FlexMount100 |
| Crossover | Tweeter: 12 dB highpass, protection and level adjustment |
