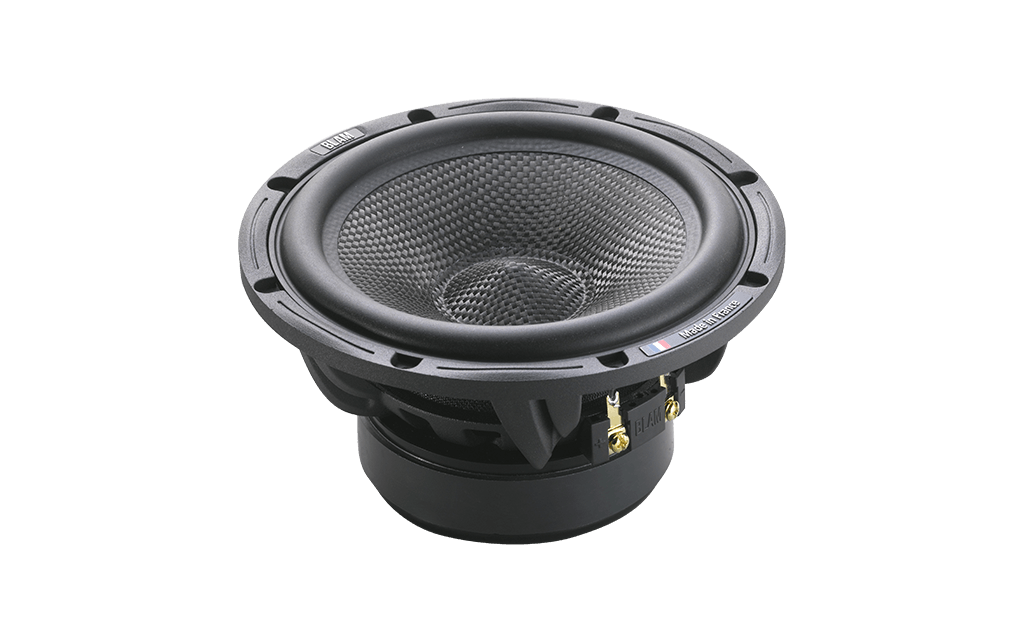

BLAM S 6.300 - SIGNATURE
WS 6.300 HIGH POWER WOOFER
Woofer 6.5” (165 mm)
Max power 250 W / Nom. power 125 W
Frequency response 50 Hz – 5 kHz
Sensitivity 93.2 dB – Impedance 2 Ω
Die cast aluminum: basket – Ultra rigid carbon fiber cone – NBR surround – Long life « conex » spider – 38 mm voice coil, fiber glass former – 100 x 20 mm Oversized magnetic motor – Gold-plated terminal.
Specifications
TECHNICAL SPECIFICATIONS
| Component | Woofer |
|---|---|
| Max power | 250 W |
| Nominal power | 125 W |
| Impedance | 2 Ω |
| Freq. Response | 60 Hz - 5 KHz |
| Sensitivity (2,83V/1m) | 93,7 dB |
| Magnet | Ferrite |
| Magnet size Ø x h | 100 x 20 mm (3.937″ x 0.787″) |
| Total driver displacement | 0.3 l (0.011 cf) |
| Weight of one component | 1.037 kg (2.286 lb) |
| Voice coil Ø | 38 mm (1.496″) |
| Voice coil height | 17 mm (0.669″) |
| Cone | Carbon fiber |
THIELE-SMALL PARAMETERS
| Effective Ø (d) | 128 mm |
|---|---|
| Sd | 128.68 cm² |
| Xmax | 6 mm |
| Re | 2 Ω |
| Fs | 43.95 Hz |
| Le | 340 µH @ 1 kHz |
| L2 | 190 µH @10 kHz |
| Vas | 19.07 L |
| Mms | 15.9 g |
| Cms | 0.8249 m/N |
| BL | 4.47 Tm |
| Qts | 0.42 |
| Qes | 0.44 |
| Qms | 10.43 |
| Sensitivity (dB/W/m) | 87.69 dB |
