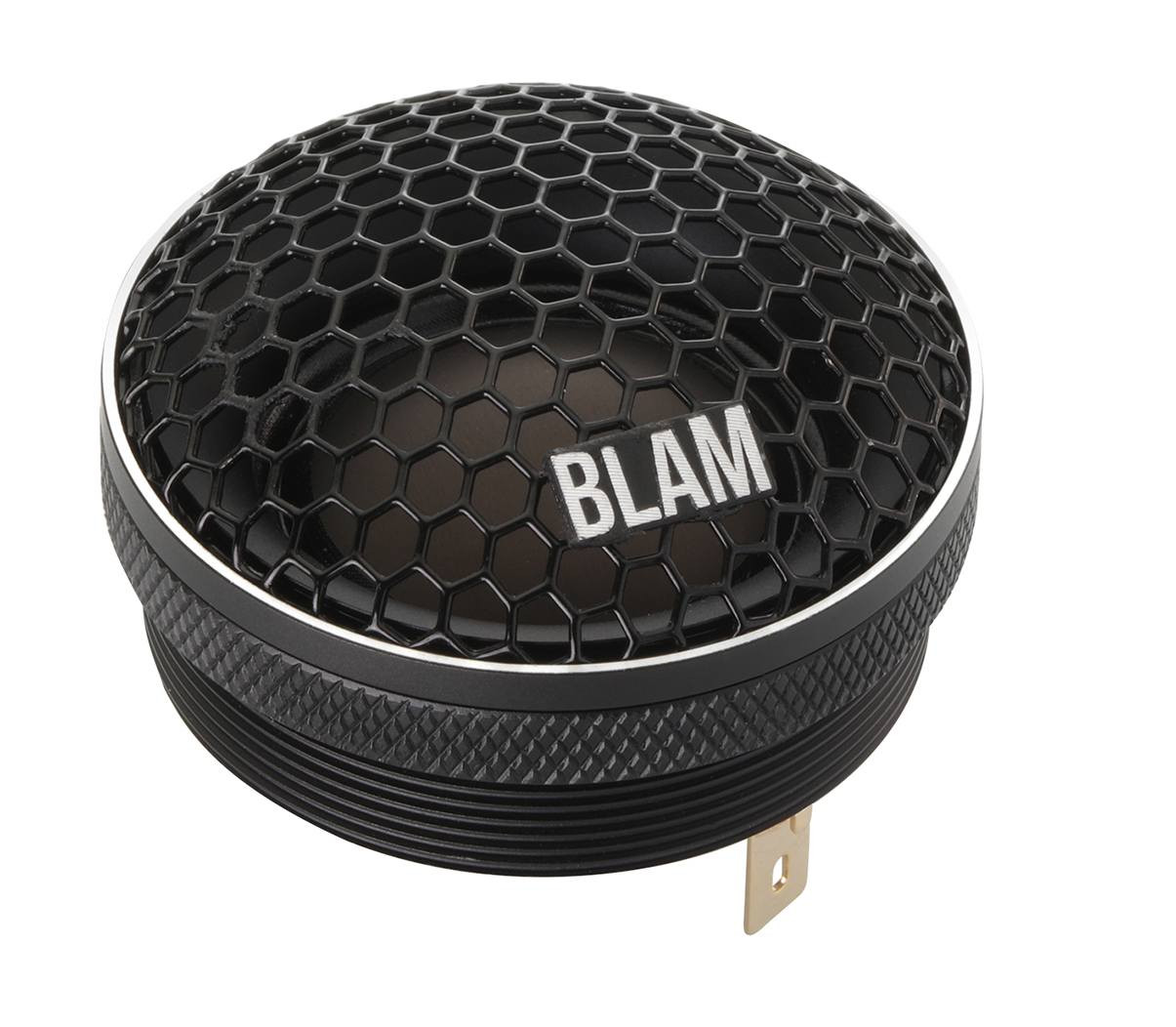

BLAM T 25MG
25 mm (1”) Pure magnesium dome tweeter
Max power 100 W / Nominal power 15 W
Frequency response 2.5 KHz – 23 KHz
Sensitivity : 89 dB – Impedance : 5 Ω
High efficiency neodymium magnet (N38) – High precision machined aluminium faceplate – Ferrofluid for high power handling – Sound transparent protection grill – Angled support included
Specifications
TECHNICAL SPECIFICATIONS
| Component | Tweeter |
|---|---|
| Max power | 100 W |
| Nominal power | 15 W |
| Impedance | 5 Ω |
| Freq. Response | 1.2 KHz - 25 KHz |
| Sensitivity (2,83V/1m) | 90.3 dB |
| Magnet | Neodymium |
| Magnet size Ø x h | 25 x 4 mm (0.965″ x 0.138″) |
| Weight of one component | 0.11 kg (0.0004 lb) |
| Voice coil Ø | 25 mm (1.000″) |
| Voice coil height | 1.7 mm (0.067″) |
| Dome | Magnesium |
THIELE-SMALL PARAMETERS
| Effective Ø (d) | 32 mm |
|---|---|
| Sd | 8.04 cm² |
| Xmax | 0 |
| Re | 5.14 Ω |
| Fs | 1600 Hz |
| Le | - |
| L2 | - |
| Vas | - |
| Mms | - |
| Cms | - |
| BL | - |
| Qts | - |
| Qes | - |
| Qms | - |
| Sensitivity (dB/W/m) | 90.3 dB |
