BLAM T 28S Black

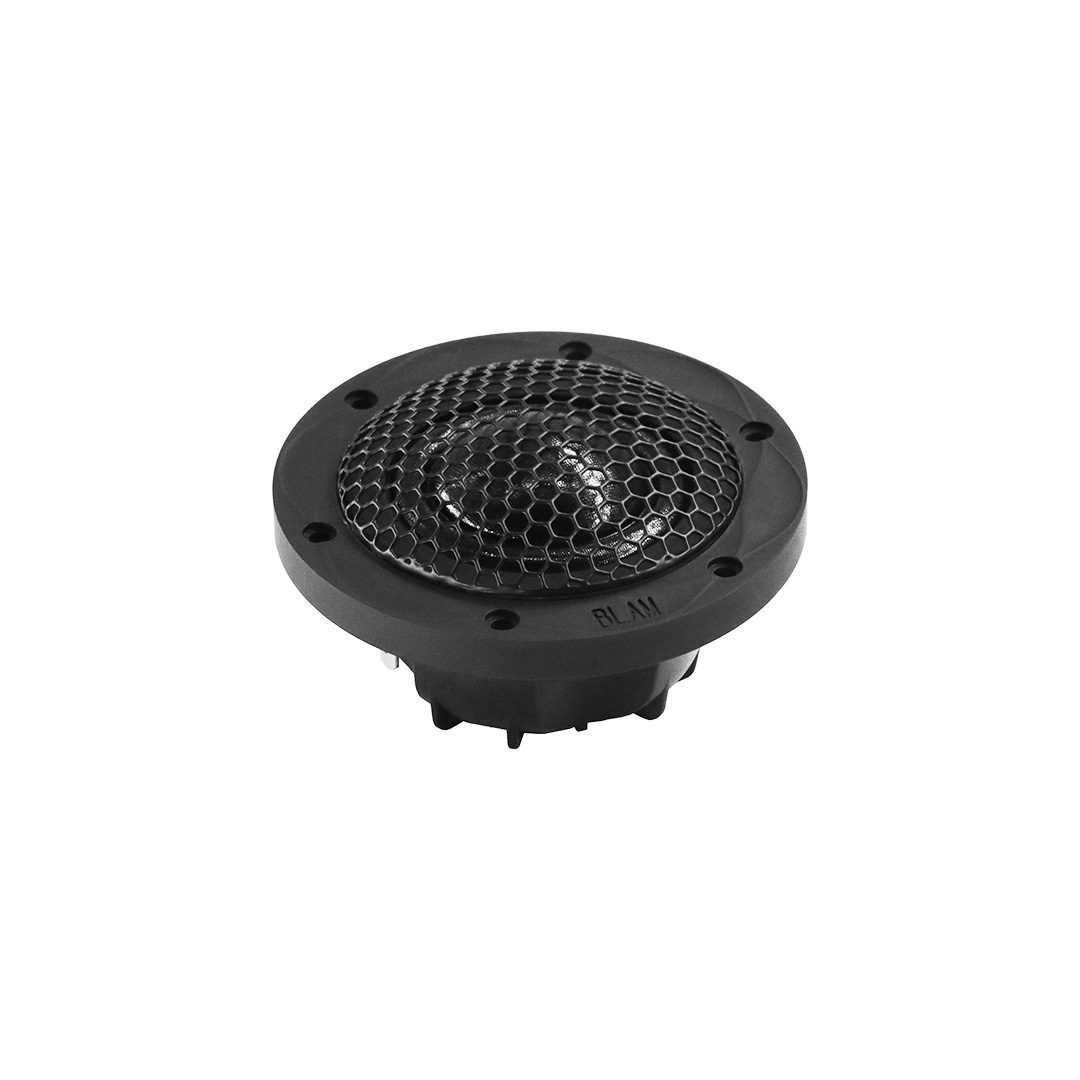

BLAM Signature 28mm textile dome tweeter, black finish.
Specifications
TECHNICAL SPECIFICATIONS
| Component | Tweeter |
|---|---|
| Max power | 100 W |
| Nominal power | 20 W |
| Impedance | 6 Ω |
| Freq. Response | 1.5 kHz - 26 KHz |
| Sensitivity (2,83V/1m) | 88.3 dB |
| Magnet | Neodymium |
| Magnet size Ø x h | 27 x 3 mm (1.063″ x 0.118″) |
| Weight of one component | 0.12 kg (0.265 lb) |
| Voice coil Ø | 28 mm (1.102″) |
| Voice coil height | 2 mm (0.079″) |
| Dome | Soft dome |
THIELE-SMALL PARAMETERS
| Effective Ø (d) | 0 mm |
|---|---|
| Sd | 9 cm² |
| Xmax | 0 |
| Re | 5 Ω |
| Fs | 943.36 Hz |
| Le | - |
| L2 | - |
| Vas | - |
| Mms | - |
| Cms | - |
| BL | - |
| Qts | - |
| Qes | - |
| Qms | - |
| Sensitivity (dB/W/m) | 86.3 dB |
