BLAM SUPERSUB 10 - SIGNATURE

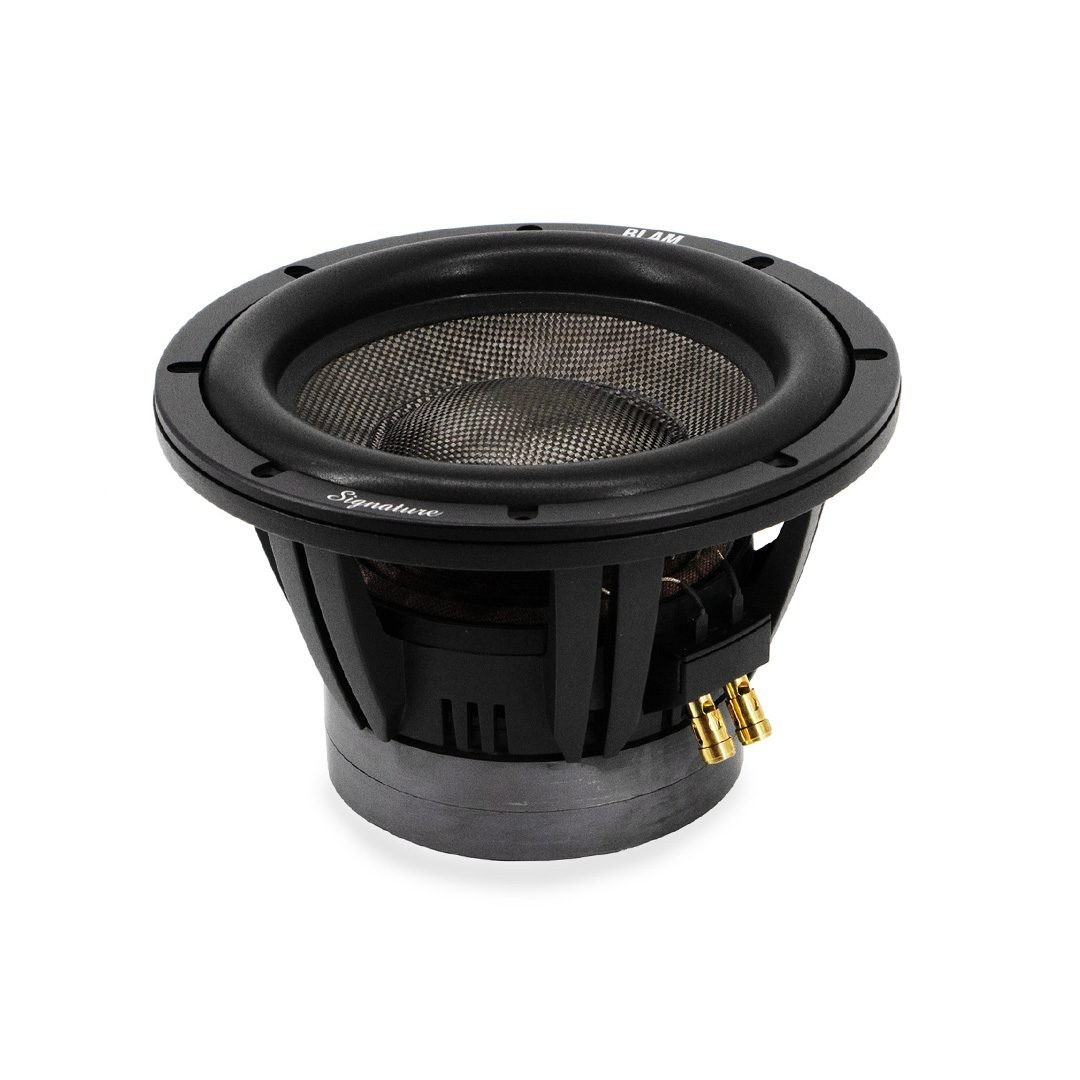

BLAM SuperSub 250mm (10") subwoofer with dual 2-ohm voice coils.
Specifications
TECHNICAL SPECIFICATIONS
| Component | Subwoofer |
|---|---|
| Max power | 1000 W |
| Nominal power | 500 W |
| Impedance | 2 x 2 Ω |
| Freq. Response | 45 - 500 Hz |
| Sensitivity (2,83V/1m) | 98,3 dB |
| Magnet | Ferrite |
| Magnet size Ø x h | 2 x 156 x 20 mm (6,142″ x 0.787″) |
| Total driver displacement | 1,7 l (0,06 cf) |
| Weight of one component | 2,3 kg (5,071 lb) |
| Voice coil Ø | 60 mm (2,362″) |
| Voice coil height | 24 mm (0,94″) |
| Cone | Carbone fiber |
THIELE-SMALL PARAMETERS
| Effective Ø (d) | 205 mm |
|---|---|
| Sd | 330,06 cm² |
| Xmax | 7 mm |
| Re | 1 Ω |
| Fs | 48,17 Hz |
| Le | 147,47 µH @ 1 kHz |
| L2 | 496,26 µH @10 kHz |
| Vas | 22,54 L |
| Mms | 74,10 g |
| Cms | 0,000147 m/N |
| BL | 6,98 Tm |
| Qts | 0,42 |
| Qes | 0,46 |
| Qms | 5,36 |
| Sensitivity (dB/W/m) | 89,3 dB |
RECOMMANDED ENCLOSURES
| Internal volume Vb | 20 |
|---|---|
| Internal Ø port | 10 cm |
| Length port | 36 cm |
| Fb | 52 Hz |
| F-3dB | 51 Hz |
| Boost | 0,5 dB at 85 Hz |
| Internal volume Vb | 30 |
| Internal Ø port | 10 cm |
| Length port | 24 cm |
| Fb | 50 Hz |
| F-3dB | 45 Hz |
| Boost | 0,9 dB at 58 Hz |
| Internal volume Vb | 40 |
| Internal Ø port | 10 cm |
| Length port | 20 cm |
| Fb | 46 Hz |
| F-3dB | 41 Hz |
| Boost | 0,9 dB at 50 Hz |
