BLAM S 6.80 - SIGNATURE

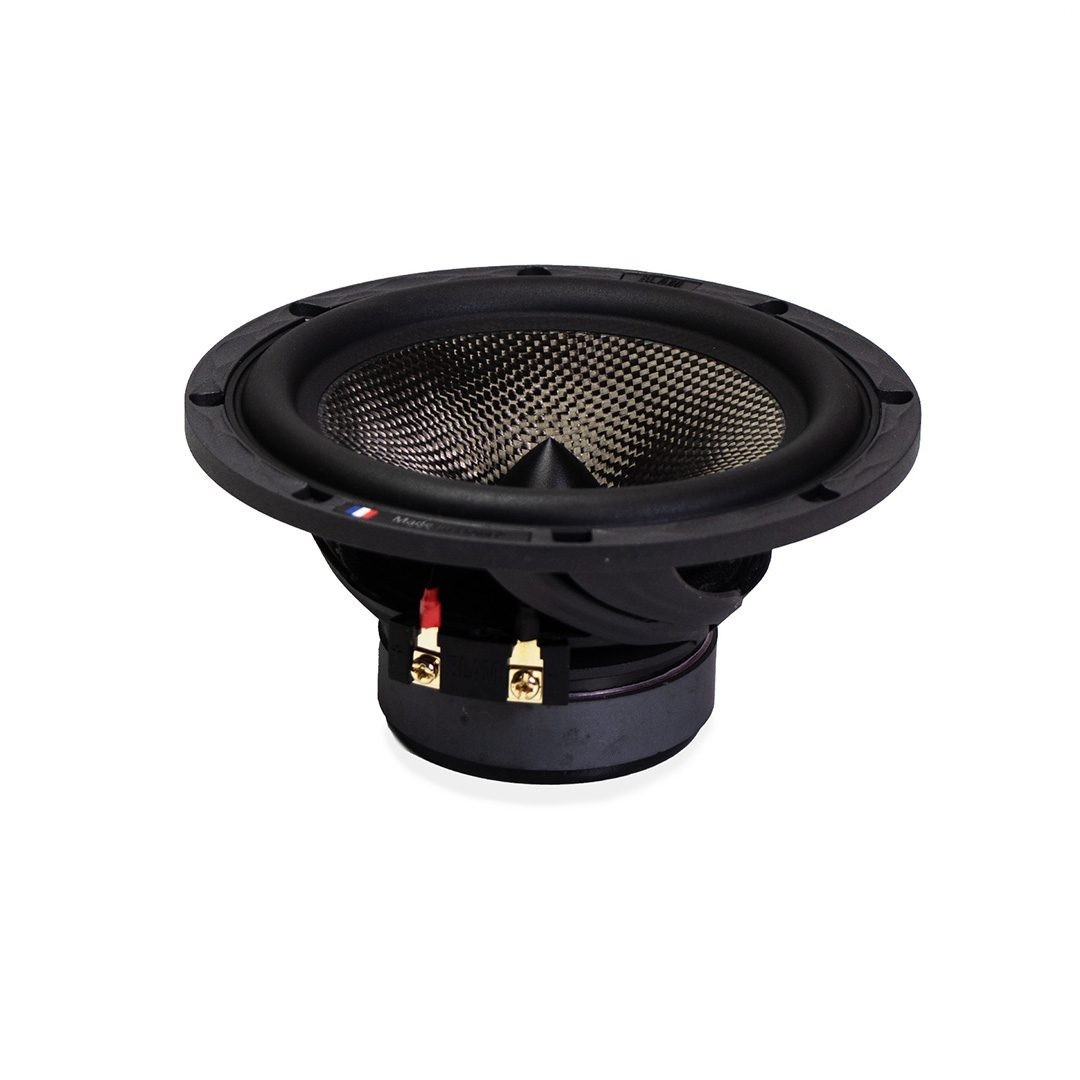

BLAM Signature 165mm (6.5") midbass driver with phase plug.
Specifications
TECHNICAL SPECIFICATIONS
| Component | Speaker |
|---|---|
| Max power | 120 W |
| Nominal power | 60 W |
| Impedance | 2 Ω |
| Freq. Response | 60 Hz - 7 KHz |
| Sensitivity (2,83V/1m) | 94,3 dB |
| Magnet | Ferrite |
| Magnet size Ø x h | 80 x 17 mm (3.150″ x 0.669″) |
| Total driver displacement | 0,3 l (0,011 cf) |
| Weight of one component | 1 kg (2.205 lb) |
| Voice coil Ø | 28 mm (1.102″) |
| Voice coil height | 12 mm (0.472″) |
| Cone | Carbon fiber |
THIELE-SMALL PARAMETERS
| Effective Ø (d) | 128 mm |
|---|---|
| Sd | 128,68 cm² |
| Xmax | 4 mm |
| Re | 2,1 Ω |
| Fs | 80,41 Hz |
| Le | 80,24 µH @ 1 kHz |
| L2 | 209,66 µH @10 kHz |
| Vas | 8,84 L |
| Mms | 10,31 g |
| Cms | 0,000380 m/N |
| BL | 3,69 Tm |
| Qts | 0,81 |
| Qes | 0,90 |
| Qms | 7,45 |
| Sensitivity (dB/W/m) | 88,5 dB |
