BLAM S 4N24 - SIGNATURE

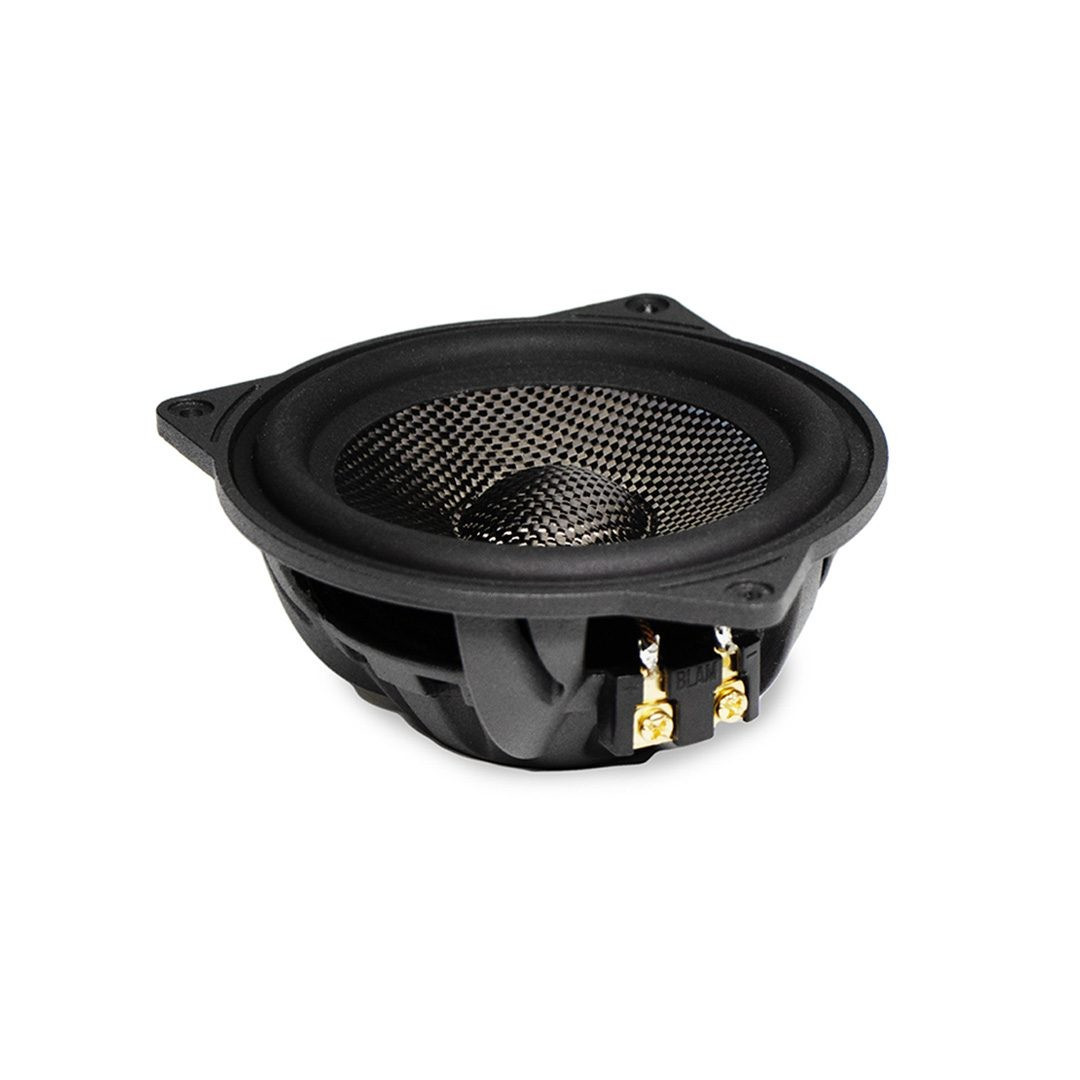

BLAM Signature 100mm (4") midrange driver.
Specifications
TECHNICAL SPECIFICATIONS
| Component | Midrange |
|---|---|
| Max power | 120 W |
| Nominal power | 60 W |
| Impedance | 3 Ω |
| Freq. Response | 95 Hz - 9 KHz |
| Sensitivity (2,83V/1m) | 88 dB |
| Magnet | Neodymium |
| Magnet size Ø x h | 24 x 11 mm (0.945″ x 0.433″) |
| Total driver displacement | 0.08 l (0.003 cf) |
| Weight of one component | 0.231 kg (0.509 lb) |
| Voice coil Ø | 25 mm (0.984″) |
| Voice coil height | 8.5 mm (0.335″) |
| Cone | Carbon fiber |
THIELE-SMALL PARAMETERS
| Effective Ø (d) | 83 mm |
|---|---|
| Sd | 54.11 cm² |
| Xmax | 2.8 mm |
| Re | 3.2 Ω |
| Fs | 119.72 Hz |
| Le | 91.62 µH @1 kHz |
| L2 | 158.85 µH @10 kHz |
| Vas | 1.05 L |
| Mms | 6.90 g |
| Cms | 0.000256 m/N |
| BL | 3.78 Tm |
| Qts | 0.98 |
| Qes | 1.16 |
| Qms | 6.17 |
| Sensitivity (dB/W/m) | 83.5 dB |
