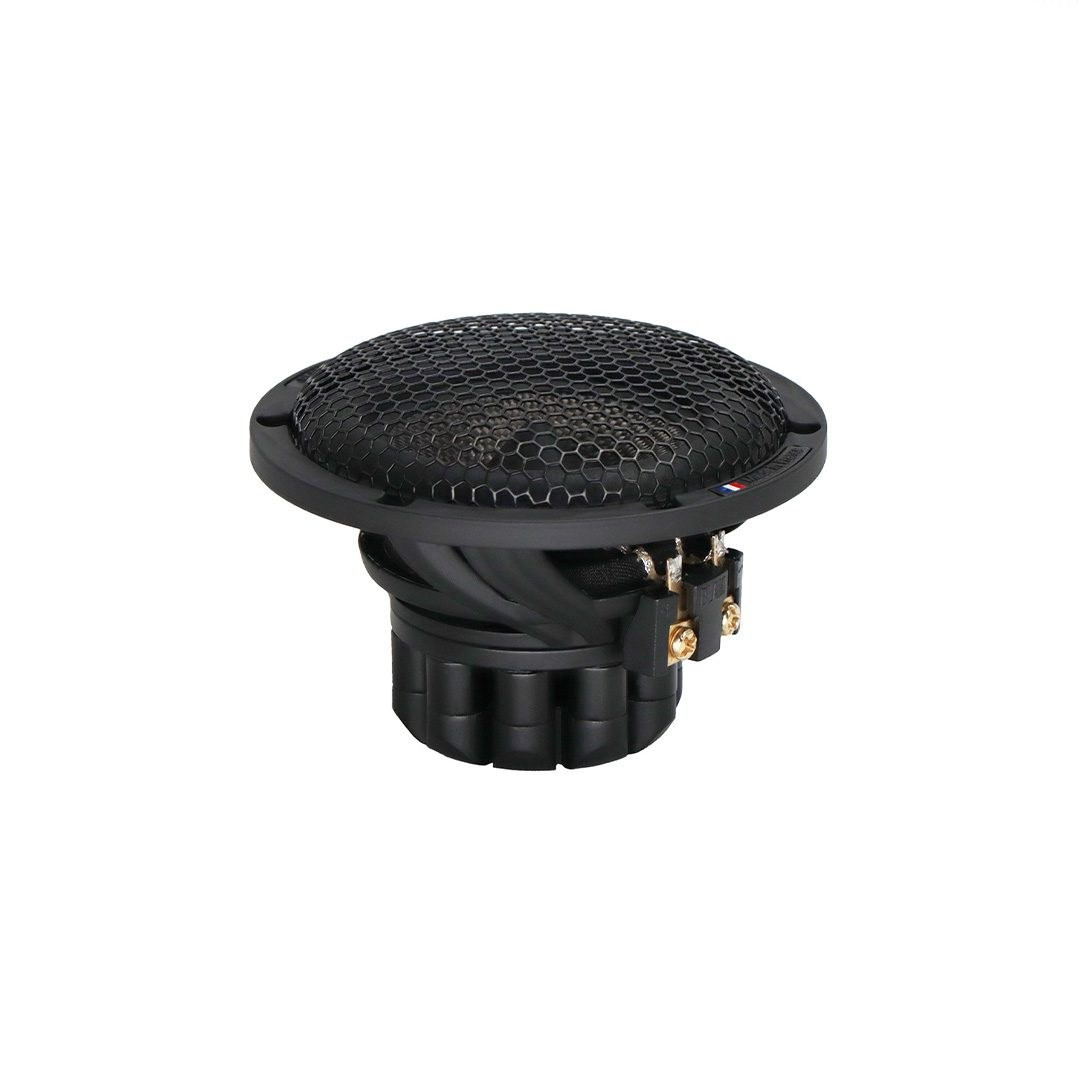

BLAM MB 3 - MULTIX BARREL
Medium MS3 – EXTENDED FREQUENCY SPEAKER
80 mm (3’’) extended frequency medium
Maximal power: 100 W / Nominal power: 25 W
Frequency response: 120 Hz – 32 KHz
Impedance 3 Ω
Die Cast aluminium basket – Ultra rigid carbon fiber cone – NBR surround – Long life damper – 20 mm voice coil on fiber glass former – Ultra powerful 8 sticks neodymium magnet – Machined aluminium phase plug – Golden terminal – Paired products at +/- 1dB.
Specifications
TECHNICAL SPECIFICATIONS
| Component | Midrange |
|---|---|
| Max power | 100 W |
| Nominal power | 25 W |
| Impedance | 3 Ω |
| Freq. Response | 120 Hz - 32 KHz |
| Sensitivity (2,83V/1m) | 88 dB |
| Magnet | Neodymium |
| Magnet size Ø x h | 8x 9 x 10 mm (8x 0.354″ x 0.394″) |
| Total driver displacement | 0.060 l (0.002 cf) |
| Weight of one component | 0.328 kg (0.723 lb) |
| Voice coil Ø | 20 mm (0.787″) |
| Voice coil height | 6 mm (0.236″) |
| Cone | Carbon fiber |
THIELE-SMALL PARAMETERS
| Effective Ø (d) | 61 mm |
|---|---|
| Sd | 29.22 cm² |
| Xmax | 1 mm |
| Re | 3.44 Ω |
| Fs | 94.82 Hz |
| Le | 16.11 µH @1 kHz |
| L2 | 186.90 µH @10 kHz |
| Vas | 1.47 L |
| Mms | 2.3 g |
| Cms | 0.001227 m/N |
| BL | 2.52 Tm |
| Qts | 0.65 |
| Qes | 0.74 |
| Qms | 5.44 |
| Sensitivity (dB/W/m) | 84.1 dB |
