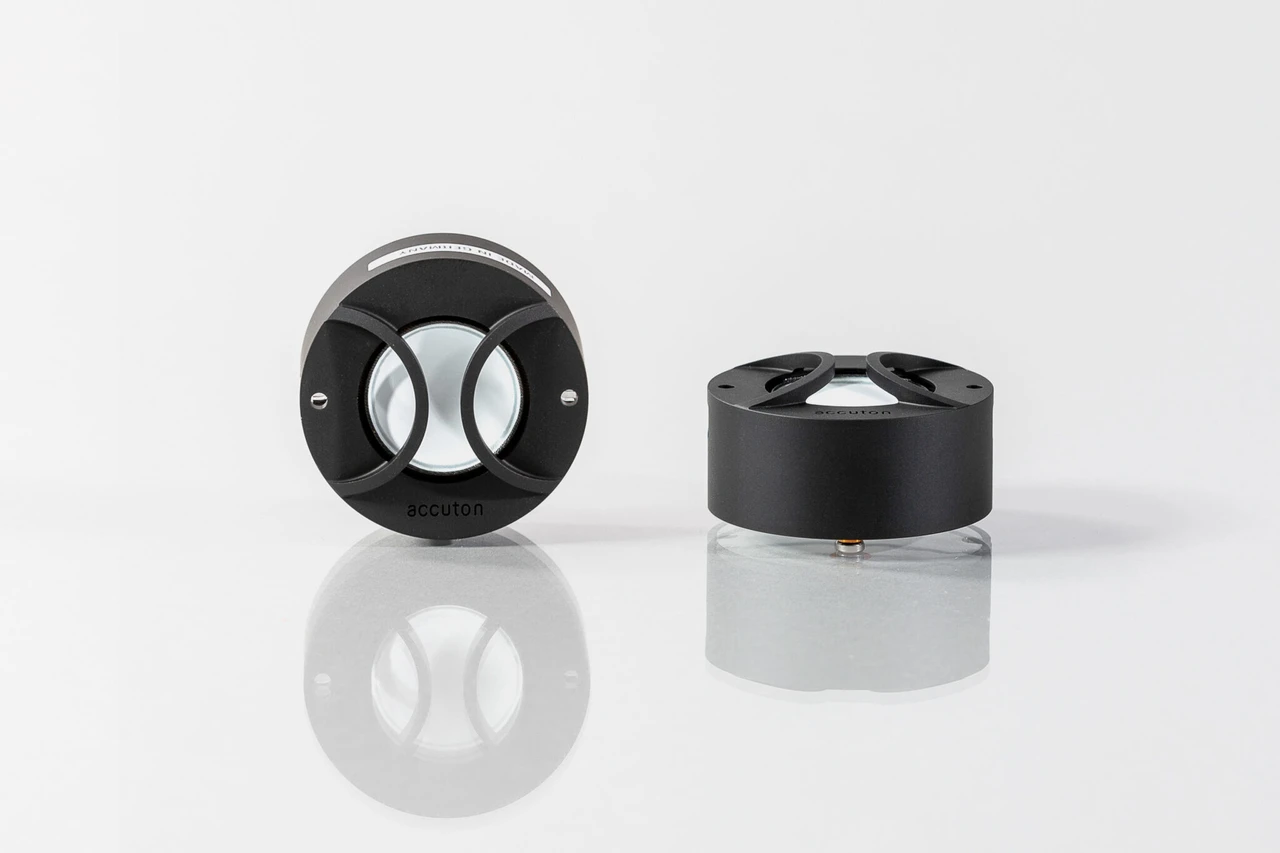

Accuton Automotive C30AM Ceramic Tweeter
The Accuton Automotive C030-04-710 is a high-end 1.2″ tweeter speaker with an inverted ceramic dome suitable for automotive aftermarket applications.
Specifications
| Dome material | CerAMIC |
|---|---|
| Application | Tweeter |
| Nominal diameter | 30 MM |
| Sensitivity | 92.5dB |
| Frequency | 2KHZ - 25KHZ |
Main Features
| Automotive approved for humidity / temperature / vibration | |
|---|---|
| No compression design for ultra high dynamics and resolution | |
| High flux neo underhung motor | |
| No Ferrofluid filling | |
| 2 kHz –25 kHz |
Mechanical Data
| Overall diameter | 55 mm |
|---|---|
| Cutout diameter | 55.5 mm |
| Min. frontplate thickness | 6 mm |
| Overall depth | 24 mm |
| Motor assembly depth | -- mm |
| Motor assembly diameter | -- mm |
| Screwfitting | 2 * DIN 7984,4mm@ / Ø47.4mm |
| Terminal | 2 * M3 Thread |
| Shipping weight (pair) | -- Kg |
| Shipping box size (pair) | -- mm |
Thiele Small Parameters
| Sensitivity (2.83V / 1m) (Lp) | 92.5 dB |
|---|---|
| DC-resistance) (Re) | 4 Ω |
| Resonance frequency (Fs) | 762.52 Hz |
| Equivalent volume of air (Vas) | 0.01 ltr |
| Mechanical Q (Qms) | 6.89 |
| Electrical Q (Qes) | 0.88 |
| Total Q (Qts) | 0.78 |
| Effective piston area (Sd) | 8.71 Cm2 |
| Moving mass (Mms) | 0.44 g |
| Suspension compliance (CMs) | 0.10 mm/n |
| Mechanical resistance (Rms) | 0.3 Ns/m |
voice coil parameters
| Power handling (P) | 120 W |
|---|---|
| Linear excursion (Xmax) | +/-0.7 mm |
| Voice coil diameter | -- mm |
| Voice coil former material | Ti |
| Voice coil material | Cu |
| Voice coil inductance (Le) | 0.03 mH |
| Force factor (Bl) | 3.09 Tm |
| Motor type | Underhung |
| Ferrofluid filling | No |
