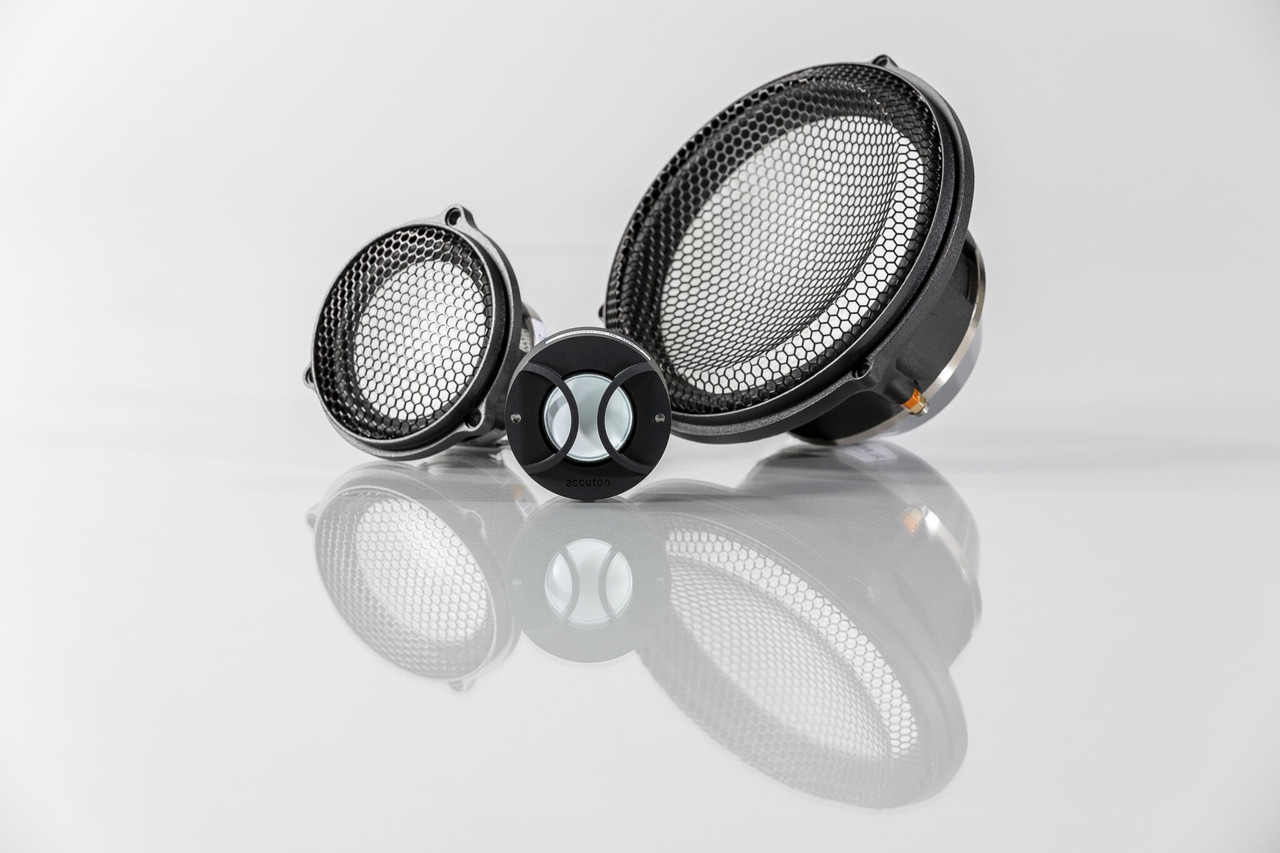

Accuton Automotive C165AM Ceramic Midbass Speaker
The Accuton Automotive C165-04-770 is a high-end 6.5″ midbass speaker with a ceramic cone suitable for automotive aftermarket applications.
Specifications
| Dome material | CerAMIC |
|---|---|
| Application | Bass-Midrange |
| Nominal diameter | 165 MM |
| Sensitivity | 91dB |
| Frequency | 35HZ - 2.8KHZ |
Main Features
| Automotive approved for humidity / temperature / vibration | |
|---|---|
| No compression design for ultra high dynamics and resolution | |
| High flux neo overhung motor | |
| Extended Xmax design | |
| 35 Hz – 2800 Hz in closed box |
Mechanical Data
| Overall diameter | 165 mm |
|---|---|
| Cutout diameter | 142 mm |
| Min. frontplate thickness | 6.5 mm |
| Overall depth | 88.5 mm |
| Motor assembly depth | 29 mm |
| Motor assembly diameter | 100 mm |
| Screwfitting | 3 * DIN 7984,4mm@ / Ø156mm |
| Terminal | 2 * M4 Thread |
| Shipping weight (pair) | -- Kg |
| Shipping box size (pair) | -- mm |
Thiele Small Parameters
| Sensitivity (2.83V / 1m) (Lp) | 91 dB |
|---|---|
| DC-resistance) (Re) | 4 Ω |
| Resonance frequency (Fs) | 66.77 Hz |
| Equivalent volume of air (Vas) | 9.35 ltr |
| Mechanical Q (Qms) | 4 |
| Electrical Q (Qes) | 0.63 |
| Total Q (Qts) | 0.55 |
| Effective piston area (Sd) | 136.85 Cm2 |
| Moving mass (Mms) | 16.15 g |
| Suspension compliance (CMs) | 0.35 mm/n |
| Mechanical resistance (Rms) | 1.70 Ns/m |
voice coil parameters
| Power handling (P) | 120 W |
|---|---|
| Linear excursion (Xmax) | +/-6 mm |
| Voice coil diameter | 55 mm |
| Voice coil former material | Ti |
| Voice coil material | Cu |
| Voice coil inductance (Le) | 0.09 mH |
| Force factor (Bl) | 6.53 Tm |
| Motor type | Overhung |
| Ferrofluid filling | No |
