2026 Lincoln Aviator

Objective:

A Bass Upgrade Worthy of the Name Aviator

Client's Vision:

Serious Low-End, Finished Like It Left the Factory That Way

Project Investment:

$10,000–$20,000 Depending on Final Design and Integration

Conceptual Meeting:

The owner of this 2026 Lincoln Aviator came to us with a clear brief: the factory system needed real low-end authority, but nothing about the install could cheapen the cabin. No boxes strapped in the cargo area, no lost floor space, no aftermarket look. Whatever we built had to feel like something Lincoln could have designed themselves — and then go a step further.

Design and Visualization:

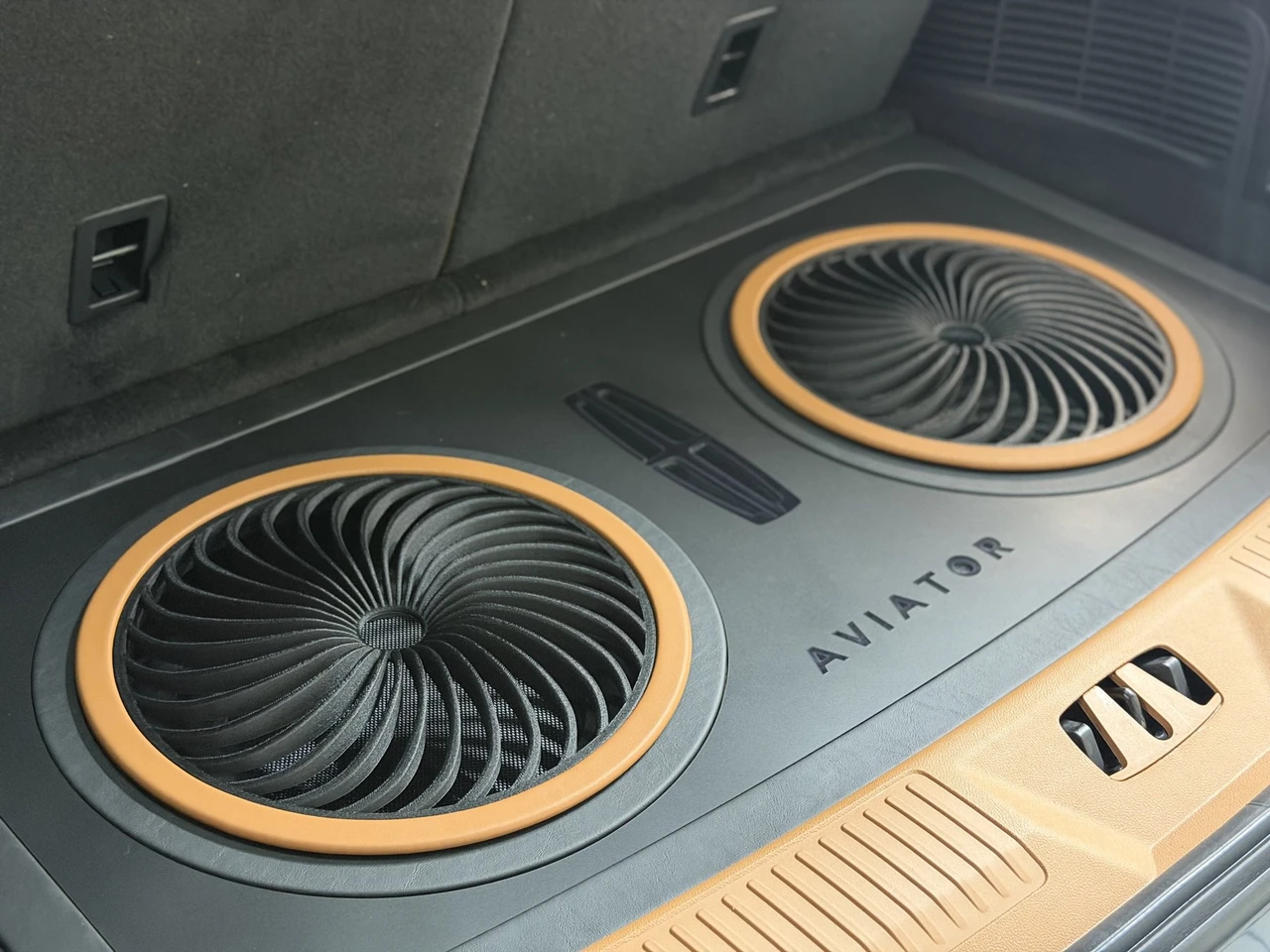

The Aviator name gave us the design language. We modeled a pair of turbine-inspired grilles — swept blades radiating from a center hub, like the fan stage of a jet engine — and set them into a new cargo floor panel scanned and modeled to the vehicle. Every line was designed in CAD before a single panel was cut, so the client could see exactly where the build was headed before fabrication began.

Custom Fabrication and Installation:

Beneath the floor sits a purpose-built enclosure housing dual Morel Ultimo PowerSlim 12″ subwoofers, driven by a HELIX P ONE MK2 monoblock — a combination we reach for when the goal is deep, effortless output with real texture, not just volume. The turbine grilles were 3D-printed in engineering-grade material for strength, and each one is framed by a trim ring wrapped to match the Aviator's caramel leather interior. The result reads as one continuous factory surface, with cargo utility preserved above it.

Lighting Integration:

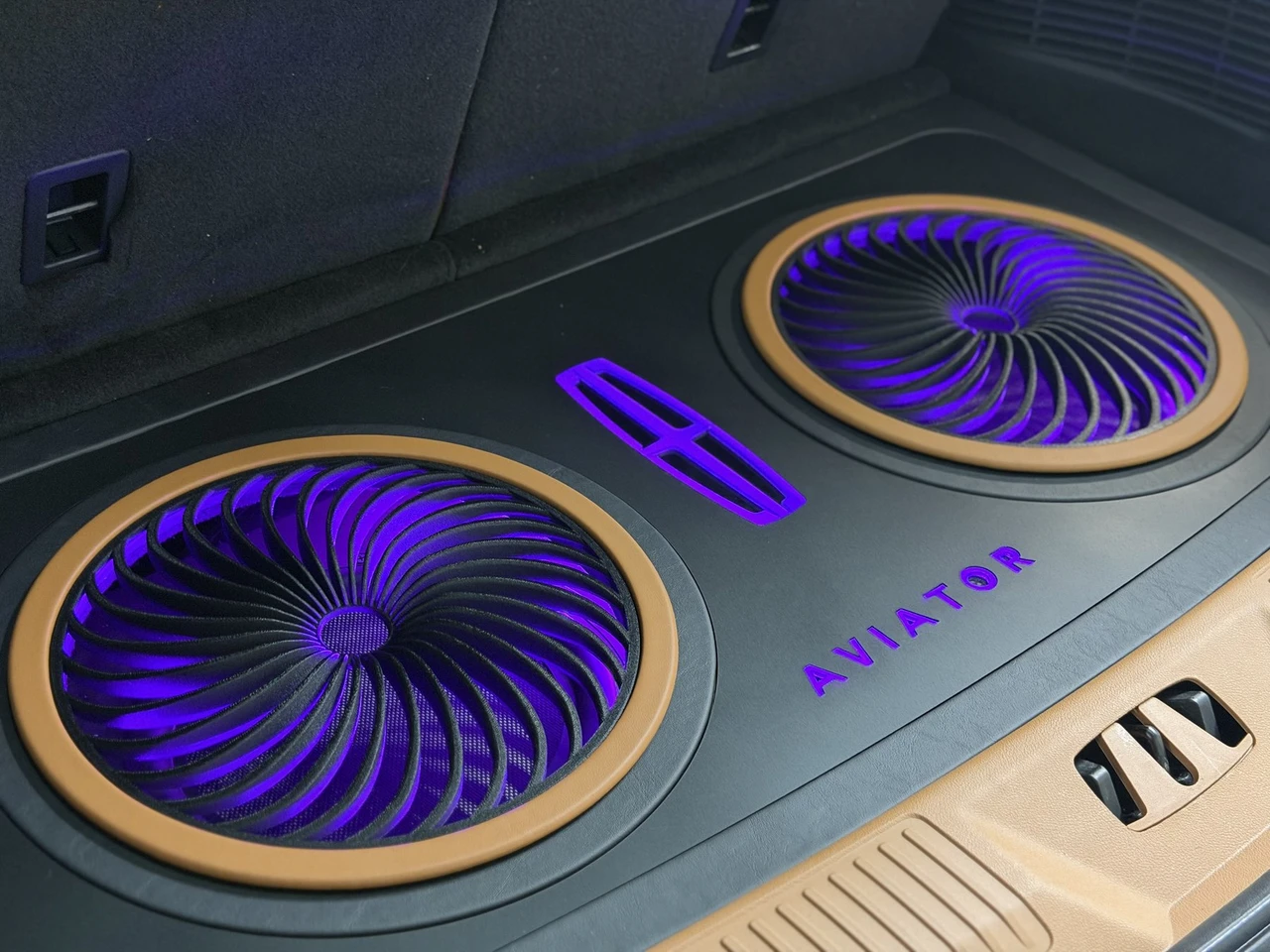

For the finishing touch, we backlit the Lincoln emblem and AVIATOR script and added RGB accent lighting beneath the grilles, so the blades appear to hover over a pool of light. The color is fully selectable — it can match the Aviator's factory ambient lighting for a subtle OEM feel, or stand out on its own when the tailgate is open and it's time to show off.

Calibration and Final Adjustments:

With fabrication complete, we blended the new sub stage into the factory system and tuned it in the vehicle — level, crossover, and time alignment dialed so the bass arrives with the rest of the music instead of behind it. The Aviator kept its composed, luxury character; it simply gained a foundation the factory system never had.

This build is what OEM+ means to us: a system that looks like it was born in the vehicle, sounds like it came from somewhere far beyond it, and gives the client something no other Aviator on the road has.
